Martin C452 MARC452

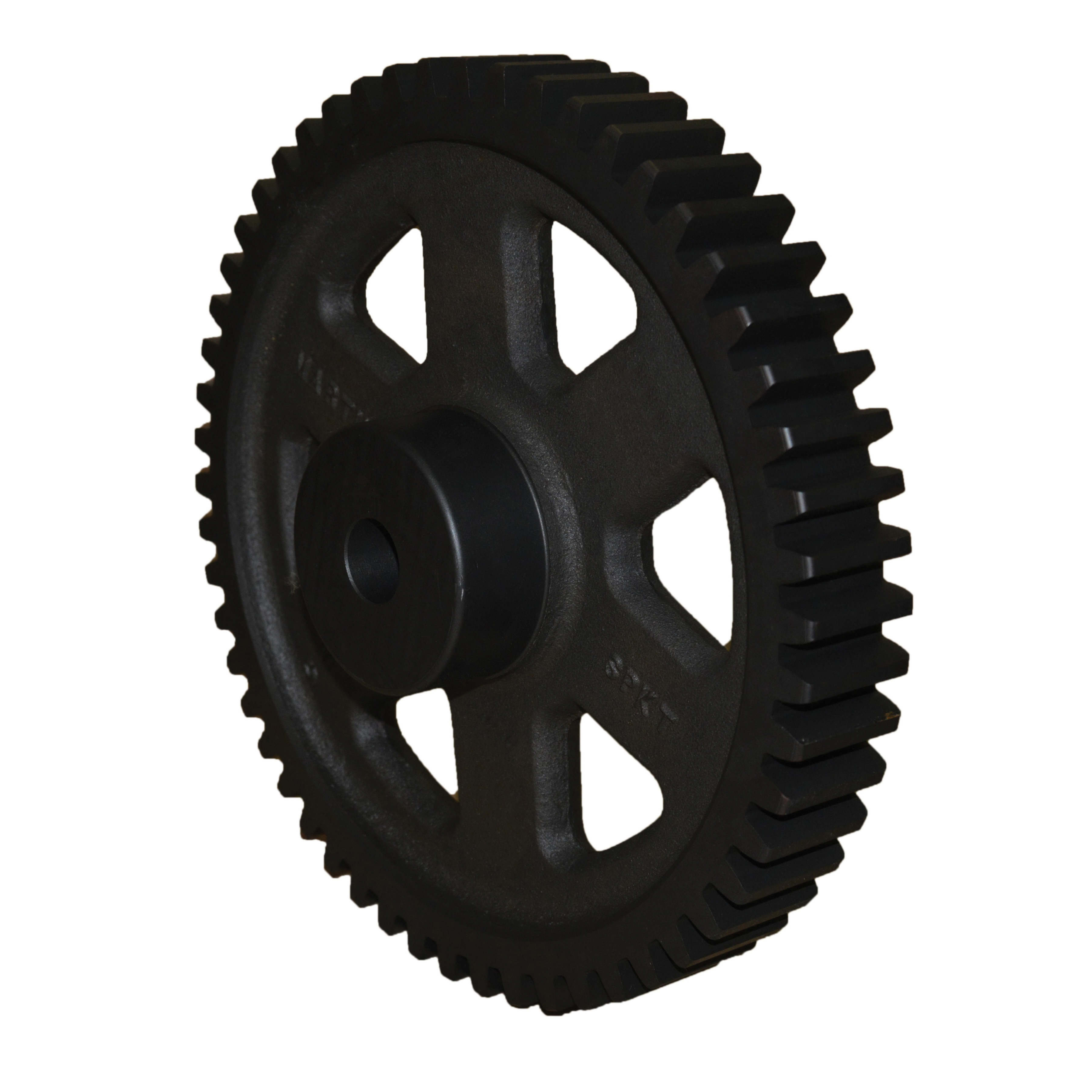

Martin C452 Reboreable Stock Spur Gear, 4 Diametral Pitch, 14.5 deg Pressure Angle, 2 in W Face, 52 Teeth, 13 in Dia Pitch, 1-1/4 to 2-1/2 in Dia Bore, Cast Iron
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MARC452
- MPN: C452
- UPC: 697950053981
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Reboreable, 1-1/4 to 2-1/2 in Bore Dia, 13-1/2 in Outside Dia, 52 Teeth, 4 Diametral Pitch, 13 in, 2 in Face Width, Type B, 3.9845 in Hub Dia, 1-1/2 in Hub Projection, 3-1/2 in Overall Length, 14.5 deg Pressure Angle, Cast Iron
| Bore Diameter | : | 1-1/4 to 2-1/2 in |
| Diametral Pitch | : | 4 |
| Face Width | : | 2 in |
| Hub Diameter | : | 3.9845 in |
| Hub Projection | : | 1-1/2 in |
| Hub Type | : | Type B |
| Material | : | Cast Iron |
| Number of Teeth | : | 52 |
| Outside Diameter | : | 13-1/2 in |
| Overall Length | : | 3-1/2 in |
| Pitch Diameter | : | 13 in |
| Pressure Angle | : | 14.5 deg |
| Type | : | Reboreable |
- Manufactured of high carbon steel material
- Precise machining and processes ensure consistent finish and high quality
