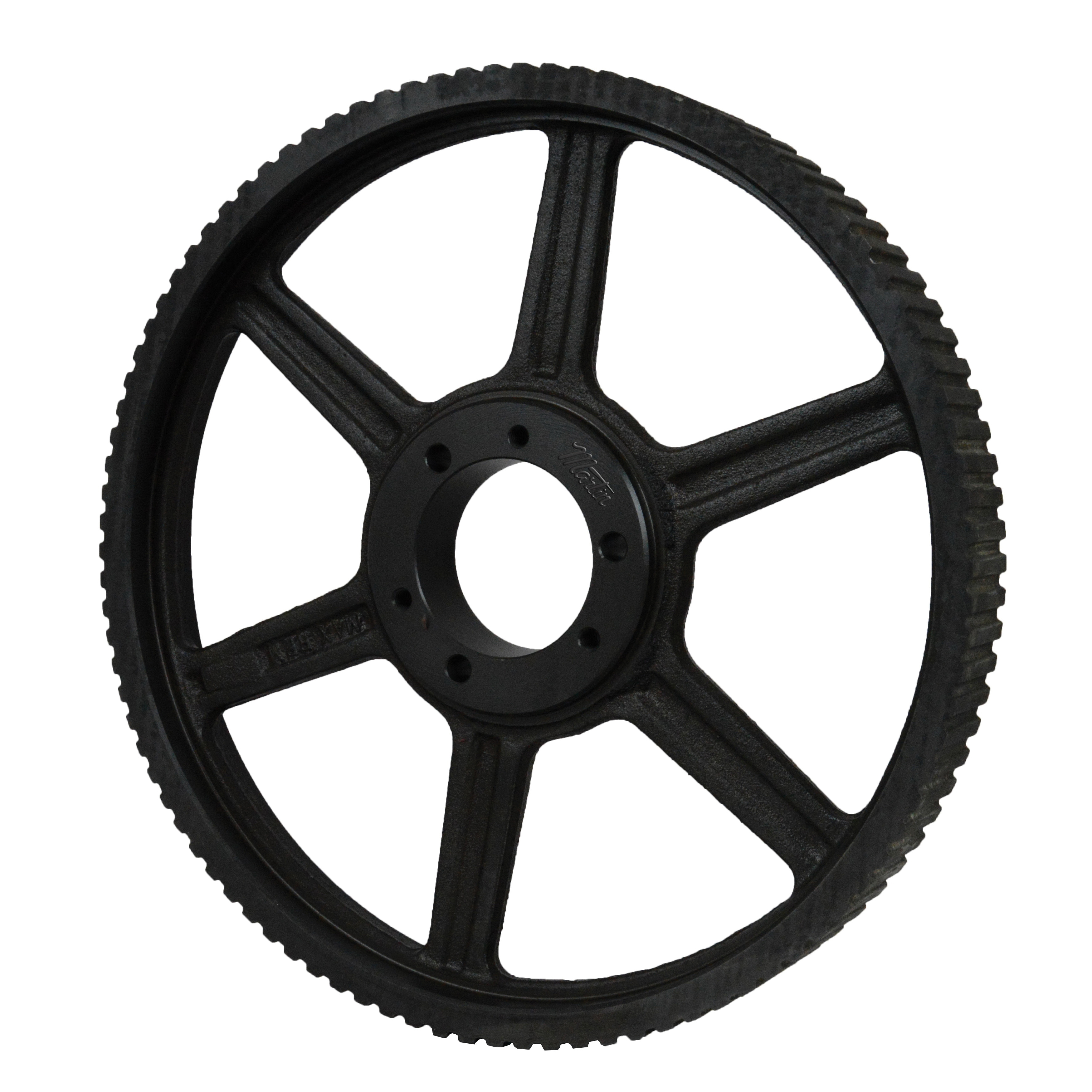

Martin 96H200 E MAR96H200-E
Martin 96H200 E Arms/Spoke Type H-3 Stock Timing Pulley, 7/8 to 8-3/4 in QD® Bushed Bore, 15.2285 in OD, 96 Grooves, 15.279 in Dia Pitch, 2.34375 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR96H200-E
- MPN: 96H200 E
- UPC: 697950128382
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Arms/Spoke Type H-3, QD® Bushed Bore, 7/8 to 8-3/4 in Bore Dia, 15.2285 in Outside Dia, 15.279 in, 96 Grooves, 1/2 in Pitch, 2.34375 in Face Width, 33/64 in Hub Projection, E Bushing, 2-5/8 in Overall Length, For Use With: 2 in W Type H Belt, Cast Iron
| Bore Diameter | : | 7/8 to 8-3/4 in |
| Bore Type | : | QD® Bushed |
| Bushing Type | : | E |
| Face Width | : | 2.34375 in |
| Hub Projection | : | 33/64 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 96 |
| Outside Diameter | : | 15.2285 in |
| Overall Length | : | 2-5/8 in |
| Pitch Diameter | : | 15.279 in |
| Pitch | : | 1/2 in |
| Suitable For Use With | : | 2 in W Type H Belt |
| Type | : | Arms/Spoke Type H-3 |
- Trapezoidal tooth form
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
