Martin 96H100 SF MAR96H100-SF

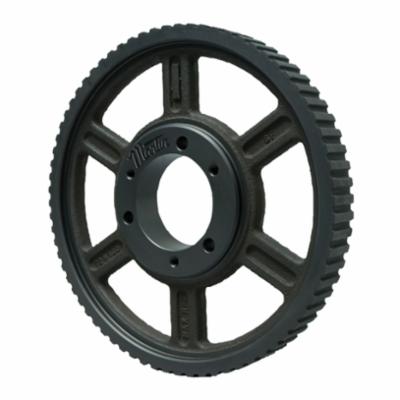

Martin 96H100 SF Spoked Type H-3 Stock Timing Pulley, 0.5 to 2.938 in QD® Bushed Bore, 15.225 in OD, 96 Grooves, 15.279 in Dia Pitch, 1.313 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR96H100-SF
  • MPN: 96H100 SF
  • UPC: 697950128368
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Spoked Type H-3, QD® Bushed Bore, 0.5 to 2.938 in Bore Dia, 15.225 in Outside Dia, 15.279 in, 96 Grooves, 1/2 in Pitch, 1.313 in Face Width, 5-1/8 in Hub Dia, SF Bushing, 2-1/16 in Overall Length, For Use With: 1 in W Type H Belt, Cast Iron

Bore Diameter      :      0.5 to 2.938 in
Bore Type      :      QD® Bushed
Bushing Type      :      SF
Face Width      :      1.313 in
Hub Diameter      :      5-1/8 in
Material      :      Cast Iron
Number of Grooves      :      96
Outside Diameter      :      15.225 in
Overall Length      :      2-1/16 in
Pitch Diameter      :      15.279 in
Pitch      :      1/2 in
Suitable For Use With      :      1 in W Type H Belt
Type      :      Spoked Type H-3
  • Exhibit many of the best features of chain drives and belt drives
  • Non-slip toothed drive with no metal to metal contact
  • No lubrication needed
  • Precise machining and processes ensure consistent finish and high quality
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
