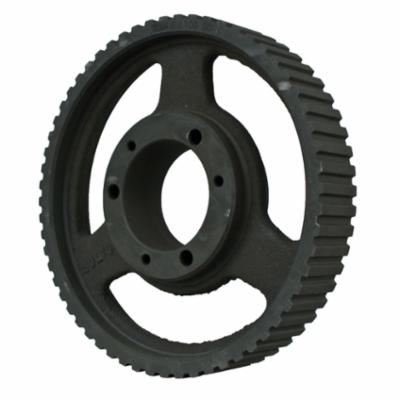

Martin 84L100 SD MAR84L100-SD
Martin 84L100 SD Spoked Type G-3 Stock Timing Pulley, 1/2 to 2 in QD® Bushed Bore, 9.997 in OD, 84 Grooves, 10.027 in Dia Pitch, 1-1/4 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR84L100-SD
- MPN: 84L100 SD
- UPC: 697950124155
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Spoked Type G-3, QD® Bushed Bore, 1/2 to 2 in Bore Dia, 9.997 in Outside Dia, 10.027 in, 84 Grooves, 3/8 in Pitch, 1-1/4 in Face Width, SD Bushing, 1-13/16 in Overall Length, For Use With: 1 in W Type L Belt, Cast Iron
| Bore Diameter | : | 1/2 to 2 in |
| Bore Type | : | QD® Bushed |
| Bushing Type | : | SD |
| Face Width | : | 1-1/4 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 84 |
| Outside Diameter | : | 9.997 in |
| Overall Length | : | 1-13/16 in |
| Pitch Diameter | : | 10.027 in |
| Pitch | : | 3/8 in |
| Suitable For Use With | : | 1 in W Type L Belt |
| Type | : | Spoked Type G-3 |
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
