Martin 80BTB11H MAR80BTB11H

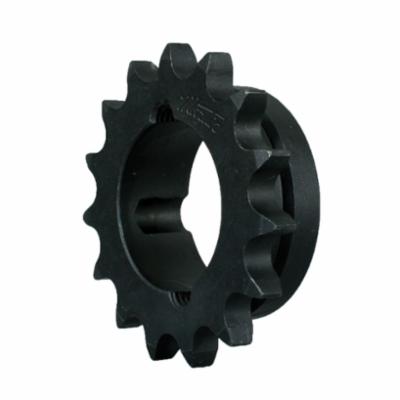

Martin Saber Tooth® 80BTB11H Taper Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth, 4.006 in OD, #80 Chain, 11 Teeth, 1 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR80BTB11H
- MPN: 80BTB11H
- UPC: 697950043500
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 4.006 in Outside Dia, #80 Chain, 11 Teeth, 1 in Pitch, 3.55 in, 2.469 in Hub Dia, 1-1/2 in Length Through Bore, 1215 Taper Lock Bushing, Steel
| Bushing Type | : | 1215 Taper Lock |
| Chain Size | : | #80 |
| Hub Diameter | : | 2.469 in |
| Length Through Bore | : | 1-1/2 in |
| Material | : | Steel |
| Number of Teeth | : | 11 |
| Outside Diameter | : | 4.006 in |
| Pitch Diameter | : | 3.55 in |
| Pitch | : | 1 in |
| Type | : | Taper Bushed Type B |
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
