Martin 80B27 MAR80B27
  1. pin-int

Martin 80B27 MAR80B27

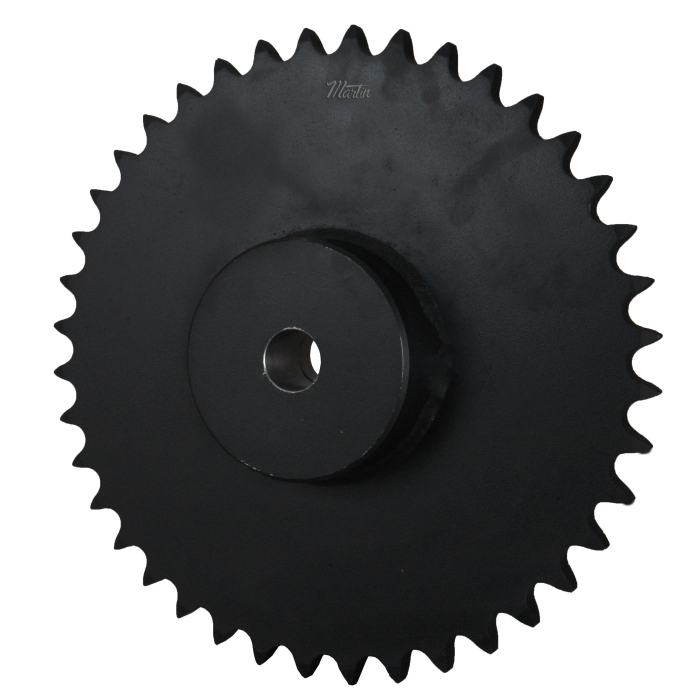

Martin 80B27 Type B Single Strand Stock Bore Welded Roller Chain Sprocket, 1-1/4 to 3-3/4 in Dia Bore, 9.156 in OD, #80 Chain, 27 Teeth, 1 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR80B27
  • MPN: 80B27
  • UPC: 697950020952
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

B style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Single Strand Stock Bore Welded, 1-1/4 to 3-3/4 in Bore, 9.156 in OD, #80 Chain, 27 Teeth, 1 in Pitch, 8.614 in Pitch Diameter, 4-3/4 in Diameter Hub, 2 in Length Through Bore, Steel

Bore Diameter      :      1-1/4 to 3-3/4 in
Chain Size      :      #80
Hub Diameter      :      4-3/4 in
Length Through Bore      :      2 in
Material      :      Steel
Number of Teeth      :      27
Outside Diameter      :      9.156 in
Pitch Diameter      :      8.614 in
Pitch      :      1 in
Type      :      Type B Single Strand Stock Bore Welded
  • Without hardened teeth
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_D06B114_Specification_Sheet.pdf
