Martin 80A65 MAR80A65

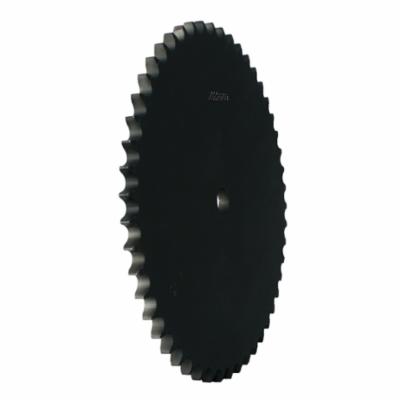

Martin 80A65 Stock Bore Type A Single Pitch Roller Chain Sprocket, 1-1/4 in Dia Bore, 21.274 in OD, #80 Chain, 65 Teeth, 1 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR80A65
  • MPN: 80A65
  • UPC: 697950021676
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Single Pitch Roller Chain Sprocket, Stock Bore Type A, 1-1/4 in Bore Dia, 21.274 in Outside Dia, #80 Chain, 65 Teeth, 1 in Pitch, 20.698 in, 0.575 in Length Through Bore, Steel

Bore Diameter      :      1-1/4 in
Chain Size      :      #80
Length Through Bore      :      0.575 in
Material      :      Steel
Number of Teeth      :      65
Outside Diameter      :      21.274 in
Pitch Diameter      :      20.698 in
Pitch      :      1 in
Type      :      Stock Bore Type A
  • Plate only
  • Precise machining and processes ensure consistent finish and high quality
