Martin 80A38 MAR80A38
  1. pin-int

Martin 80A38 MAR80A38

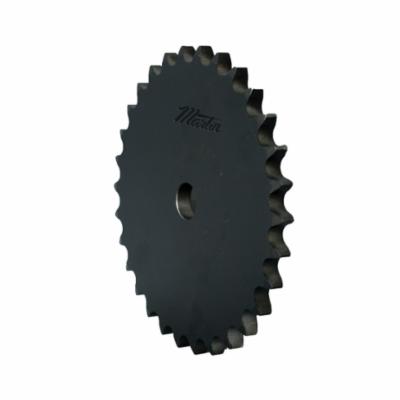

Martin 80A38 Stock Bore Type A Single Pitch Roller Chain Sprocket, 1-3/16 in Dia Bore, 12.668 in OD, #80 Chain, 38 Teeth, 1 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR80A38
  • MPN: 80A38
  • UPC: 697950021256
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Single Pitch Roller Chain Sprocket, Stock Bore Type A, 1-3/16 in Bore Dia, 12.668 in Outside Dia, #80 Chain, 38 Teeth, 1 in Pitch, 12.11 in, 0.575 in Length Through Bore, Steel

Bore Diameter      :      1-3/16 in
Chain Size      :      #80
Length Through Bore      :      0.575 in
Material      :      Steel
Number of Teeth      :      38
Outside Diameter      :      12.668 in
Pitch Diameter      :      12.11 in
Pitch      :      1 in
Type      :      Stock Bore Type A
  • Plate only
  • Precise machining and processes ensure consistent finish and high quality
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
