Martin 80A112 MAR80A112
  1. pin-int

Martin 80A112 MAR80A112

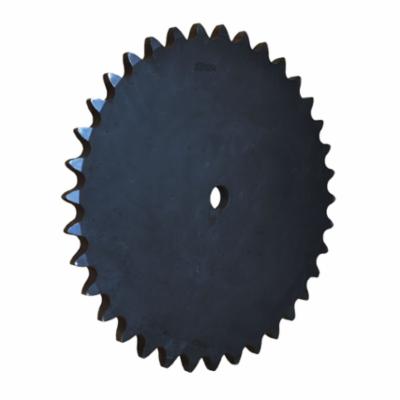

Martin 80A112 Stock Bore Type A Single Pitch Roller Chain Sprocket, 1-1/2 in Dia Bore, 36.241 in OD, #80 Chain, 112 Teeth, 1 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR80A112
  • MPN: 80A112
  • UPC: 697950021874
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Single Pitch Roller Chain Sprocket, Stock Bore Type A, 1-1/2 in Bore Dia, 36.241 in Outside Dia, #80 Chain, 112 Teeth, 1 in Pitch, 35.655 in, 0.575 in Length Through Bore, Steel

Bore Diameter      :      1-1/2 in
Chain Size      :      #80
Length Through Bore      :      0.575 in
Material      :      Steel
Number of Teeth      :      112
Outside Diameter      :      36.241 in
Pitch Diameter      :      35.655 in
Pitch      :      1 in
Type      :      Stock Bore Type A
  • Plate only
  • Precise machining and processes ensure consistent finish and high quality
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
