Martin 78CS14 2 7/16 MAR78CS142 7/16
  1. pin-int

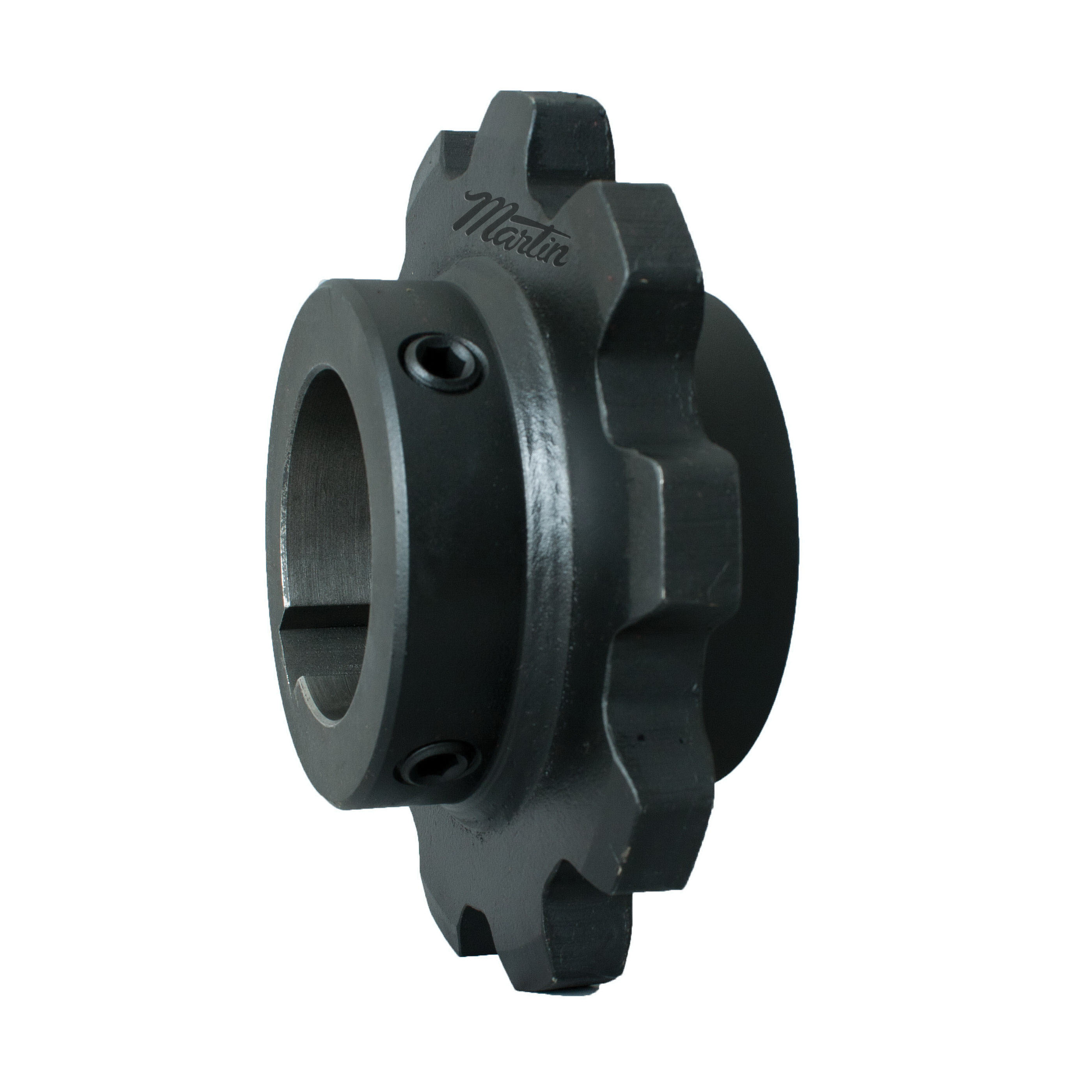

Martin 78CS14 2 7/16 MAR78CS142 7/16

Martin Accu-Torch® 78CS14 2 7/16 Type C Bored-to-Size Flame Cut Sprocket, 2-7/16 in Dia Bore, 12.431 in OD, #78 Chain, 14 Teeth, 2.609 in Pitch, 11.72 in Dia Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR78CS142 7/16
  • MPN: 78CS14 2 7/16
  • UPC: 697950324357
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.

Martin Accu-Torch® Flame Cut Sprocket, Type C Bored-to-Size, 2-7/16 in Bore, 12.431 in OD, #78 Chain, 14 Teeth, 2.609 in Pitch, 11.72 in Pitch Diameter, 5-1/2 in Diameter Hub, 5/8-11 x 5/8 in Screw, 5/8 x 5/16 in Keyway, 4-1/2 in Length Through Bore, Steel

Bore Diameter      :      2-7/16 in
Chain Size      :      #78
Hub Diameter      :      5-1/2 in
Keyway Size      :      5/8 x 5/16 in
Length Through Bore      :      4-1/2 in
Material      :      Steel
Number of Teeth      :      14
Outside Diameter      :      12.431 in
Pitch Diameter      :      11.72 in
Pitch      :      2.609 in
Screw Size      :      5/8-11 x 5/8 in
Type      :      Type C Bored-to-Size
  • Item Features 01=Manufactured of high carbon steel
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Shaft ready part saves on downtime cost and extra charges
