Martin 60BB15H 5/8 MAR60BB15H5/8
  1. pin-int

Martin 60BB15H 5/8 MAR60BB15H5/8

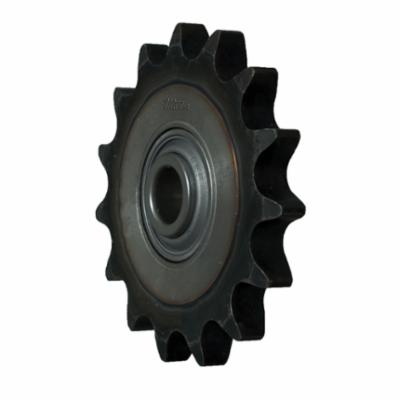

Martin 60BB15H 5/8 BB-H Ball Bearing Type A Idler Roller Chain Sprocket, 5/8 in Dia Bore, 3.98 in OD, 60 Chain, 15 Teeth, 3/4 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR60BB15H5/8
  • MPN: 60BB15H 5/8
  • UPC: 697950340500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin idlers are smooth-running and available in oil-impregnated, sintered bronze, extra-duty bearing press-fitted in sprocket and a hardened steel journal case for maximum resistance to wear. Steel sprockets used in Martin idlers are accurately machined (not stamped) the same as sprockets normally supplied for power transmission use. Martin can also alter existing sprockets and install bearings to make custom idlers.

Martin Idler Roller Chain Sprocket, Ball Bearing Type A, Series: BB-H, 5/8 in Bore Dia, 3.98 in Outside Dia, 60 Chain, 15 Teeth, 3/4 in Pitch, 3.607 in, 2.541 in Hub Dia, 0.72 in Length Through Bore, Steel

Bore Diameter      :      5/8 in
Chain Size      :      60
Hub Diameter      :      2.541 in
Length Through Bore      :      0.72 in
Material      :      Steel
Number of Teeth      :      15
Outside Diameter      :      3.98 in
Pitch Diameter      :      3.607 in
Pitch      :      3/4 in
Series      :      BB-H
Type      :      Ball Bearing Type A
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_35BB20H_5_8_Catalog.pdf
