Martin 50SH17 MAR50SH17
  1. pin-int

Martin 50SH17 MAR50SH17

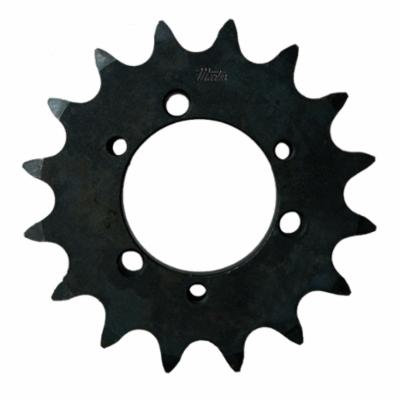

Martin 50SH17 QD Bushed Type B Single Pitch Roller Chain Sprocket, 3.718 in OD, #50 Chain, 17 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR50SH17
  • MPN: 50SH17
  • UPC: 697950010854
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Single Pitch Roller Chain Sprocket, QD Bushed Type B, 3.718 in Outside Dia, #50 Chain, 17 Teeth, 5/8 in Pitch, 3.401 in, 2.688 in Hub Dia, 1-5/16 in Length Through Bore, Type SH QD® Bushing, Steel

Bushing Type      :      Type SH QD®
Chain Size      :      #50
Hub Diameter      :      2.688 in
Length Through Bore      :      1-5/16 in
Material      :      Steel
Number of Teeth      :      17
Outside Diameter      :      3.718 in
Pitch Diameter      :      3.401 in
Pitch      :      5/8 in
Type      :      QD Bushed Type B
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
