Martin 50B51 MAR50B51

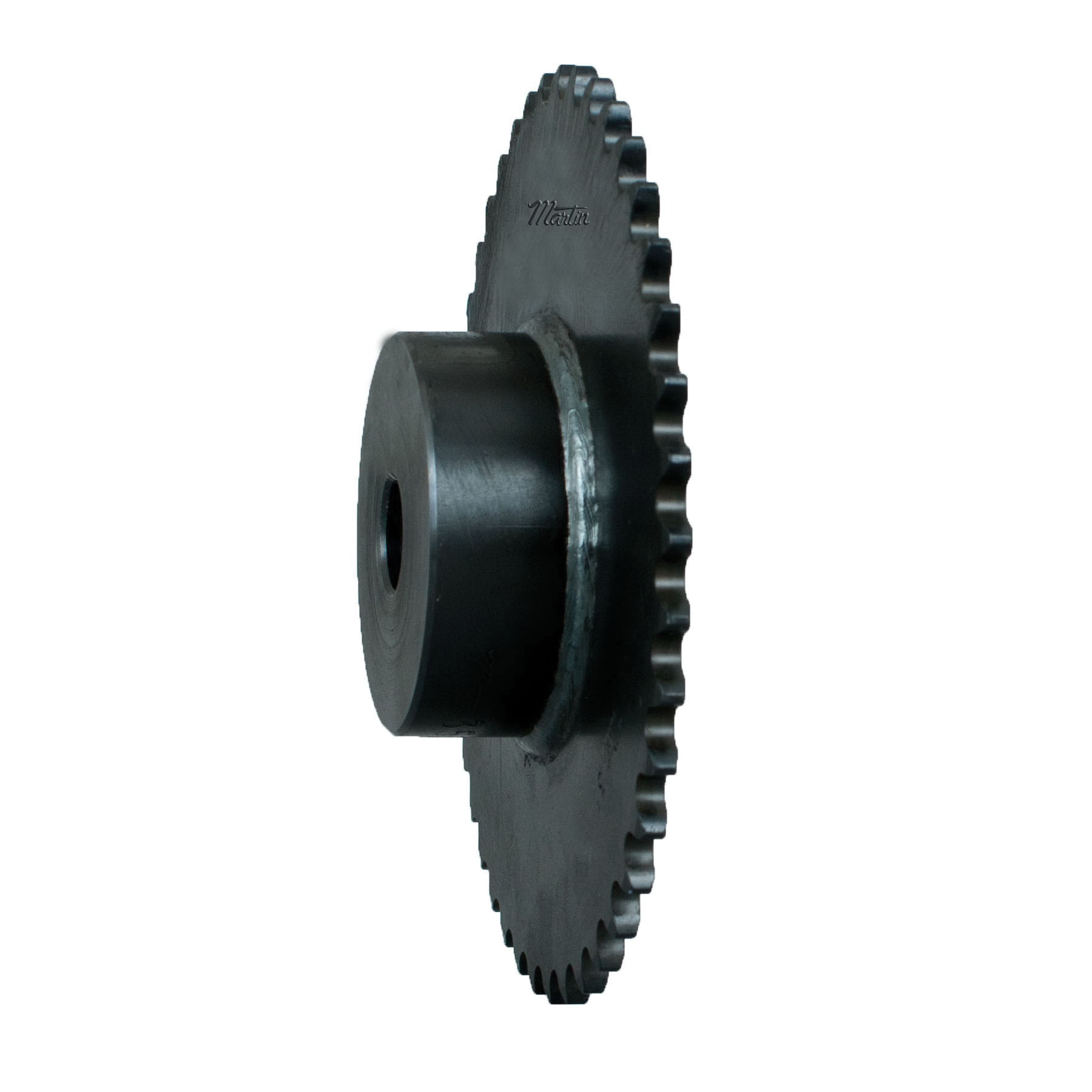

Martin 50B51 Type B Single Strand Welded Reboreable Roller Chain Sprocket, 1 to 2-1/2 in Dia Bore, 10.508 in OD, #50 Chain, 51 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR50B51
  • MPN: 50B51
  • UPC: 697950295879
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

B Style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and hardened teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Single Strand Welded Reboreable, 1 to 2-1/2 in Bore, 10.508 in OD, #50 Chain, 51 Teeth, 5/8 in Pitch, 10.1525 in Pitch Diameter, 3-3/4 in Diameter Hub, 1-1/4 in Length Through Bore, Steel

Bore Diameter      :      1 to 2-1/2 in
Chain Size      :      #50
Hub Diameter      :      3-3/4 in
Length Through Bore      :      1-1/4 in
Material      :      Steel
Number of Teeth      :      51
Outside Diameter      :      10.508 in
Pitch Diameter      :      10.1525 in
Pitch      :      5/8 in
Type      :      Type B Single Strand Welded Reboreable
  • Item Features 01=Manufactured of high carbon steel
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Bores are concentric to pitch line, minimizing run out
