Martin 50A33 MAR50A33

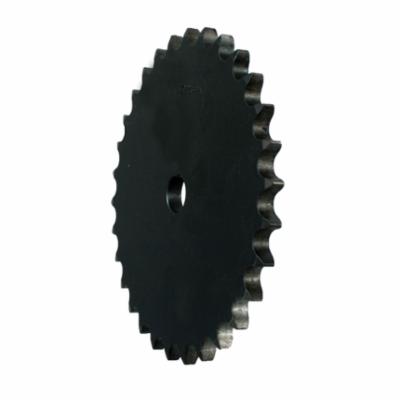

Martin 50A33 Stock Bore Type A Single Pitch Roller Chain Sprocket, 23/32 in Dia Bore, 6.92 in OD, #50 Chain, 33 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR50A33
  • MPN: 50A33
  • UPC: 697950012698
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Single Pitch Roller Chain Sprocket, Stock Bore Type A, 23/32 in Bore Dia, 6.92 in Outside Dia, #50 Chain, 33 Teeth, 5/8 in Pitch, 6.575 in, 0.343 in Length Through Bore, Steel

Bore Diameter      :      23/32 in
Chain Size      :      #50
Length Through Bore      :      0.343 in
Material      :      Steel
Number of Teeth      :      33
Outside Diameter      :      6.92 in
Pitch Diameter      :      6.575 in
Pitch      :      5/8 in
Type      :      Stock Bore Type A
  • Plate only
  • Precise machining and processes ensure consistent finish and high quality
