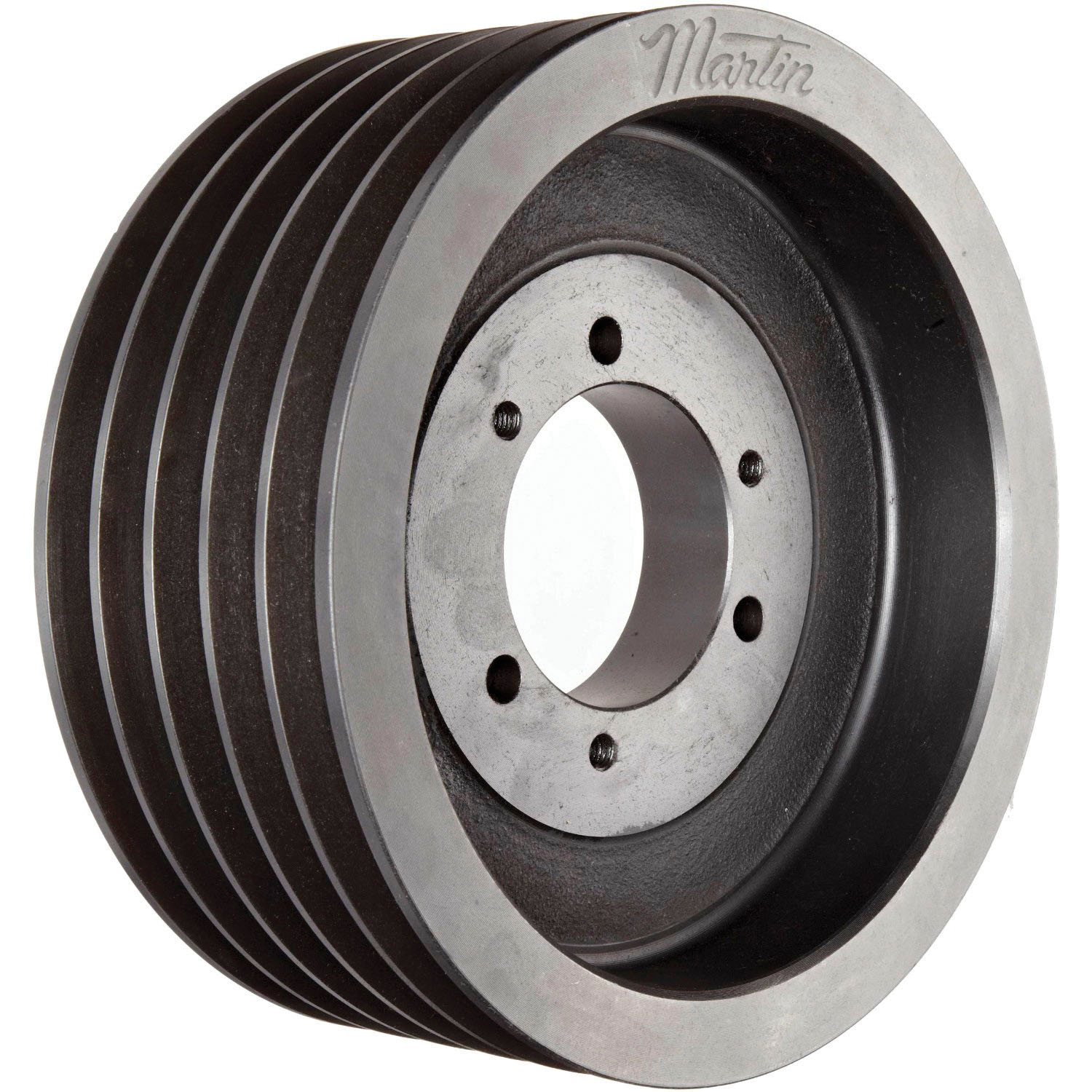

Martin 5 D 160 F MAR5D160
Martin 5 D 160 F Type A Web Conventional Sheave, 1 to 3-5/16 in Bushed Bore, 16.6 in OD, 5 Grooves, 16 in Dia Pitch, 7-1/2 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR5D160
- MPN: 5 D 160 F
- UPC: 697950118239
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Conventional (wide/classical) sheaves are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-Belt sheaves to accept "A", "B", "C", and "D" belts.
Martin Conventional Sheave, Type A Web, Bushed Bore, 1 to 3-5/16 in Bore, 16.6 in OD, 16 in Pitch Diameter, 5 Grooves, 7-1/2 in Face Width, QD® F Bushing, 3-5/8 in Overall Length, For Use With: D Cross Section Belt, Cast Iron
| Bore Diameter | : | 1 to 3-5/16 in |
| Bore Type | : | Bushed |
| Bushing Type | : | QD® F |
| Face Width | : | 7-1/2 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 5 |
| Outside Diameter | : | 16.6 in |
| Overall Length | : | 3-5/8 in |
| Pitch Diameter | : | 16 in |
| Suitable For Use With | : | D Cross Section Belt |
| Type | : | Type A Web |
- Interchangeable with other manufacturer's QD® bushings
- Class 30 gray iron
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
