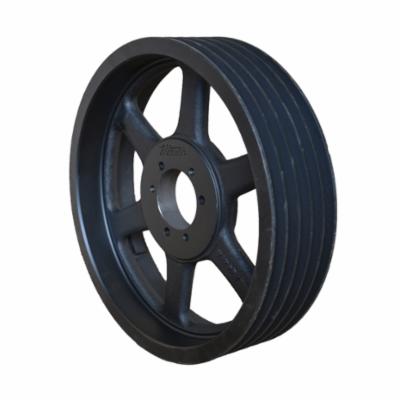

Martin 5 B 184 SF MAR5B184
Martin 5 B 184 SF Arm/Spoke Type A-3 Conventional Sheave, 0.5 to 2.938 in QD® Bushed Bore, 18-3/4 in OD, 5 Grooves, 18.4 in Dia Pitch, 4 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR5B184
- MPN: 5 B 184 SF
- UPC: 697950117652
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Conventional (wide/classical) sheaves are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to accept "A", "B", "C", and "D" belts.
Martin Conventional Sheave, Arm/Spoke Type A-3, QD® Bushed Bore, 0.5 to 2.938 in Bore, 18-3/4 in OD, 18.4 in Pitch Diameter, 5 Grooves, 4 in Face Width, SF Bushing, 4 in Overall Length, For Use With: AB Cross Section V-Belts, Cast Iron
| Bore Diameter | : | 0.5 to 2.938 in |
| Bore Type | : | QD® Bushed |
| Bushing Type | : | SF |
| Face Width | : | 4 in |
| Material | : | Cast Iron |
| Number of Grooves | : | 5 |
| Outside Diameter | : | 18-3/4 in |
| Overall Length | : | 4 in |
| Pitch Diameter | : | 18.4 in |
| Suitable For Use With | : | AB Cross Section V-Belts |
| Type | : | Arm/Spoke Type A-3 |
- Class 30 Gray Iron
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Statically balanced with maximum rim speed marked on print
