Martin 42XL037 MAR42XL037
  1. pin-int

Martin 42XL037 MAR42XL037

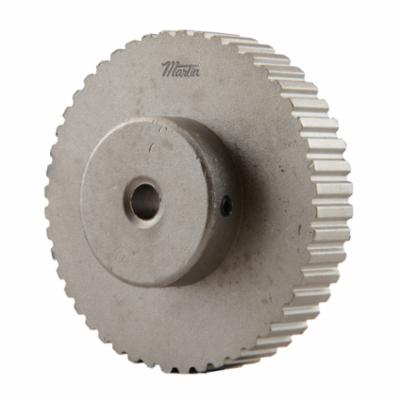

Martin 42XL037 Solid Type DF-1 Stock Timing Pulley, 0.313 to 1.188 in Minimum Plain/Reborable Bore, 2.654 in OD, 42 Grooves, 2.674 in Dia Pitch, 0.563 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR42XL037
  • MPN: 42XL037
  • UPC: 697950117577
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 0.313 to 1.188 in Bore Dia, 2.654 in Outside Dia, 2.674 in, 42 Grooves, 0.2 in Pitch, 0.563 in Face Width, 1-1/2 in Hub Dia, 7/16 in Hub Projection, 1 in Overall Length, For Use With: Type XL Belt, Steel

Bore Diameter      :      0.313 to 1.188 in
Bore Type      :      Minimum Plain/Reborable
Face Width      :      0.563 in
Hub Diameter      :      1-1/2 in
Hub Projection      :      7/16 in
Material      :      Steel
Number of Grooves      :      42
Outside Diameter      :      2.654 in
Overall Length      :      1 in
Pitch Diameter      :      2.674 in
Pitch      :      0.2 in
Suitable For Use With      :      Type XL Belt
Type      :      Solid Type DF-1
  • Exhibit many of the best features of chain drives and belt drives
  • Non-slip toothed drive with no metal to metal contact
  • No lubrication needed
  • Precise machining and processes ensure consistent finish and high quality
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
