Martin 41A80 MAR41A80

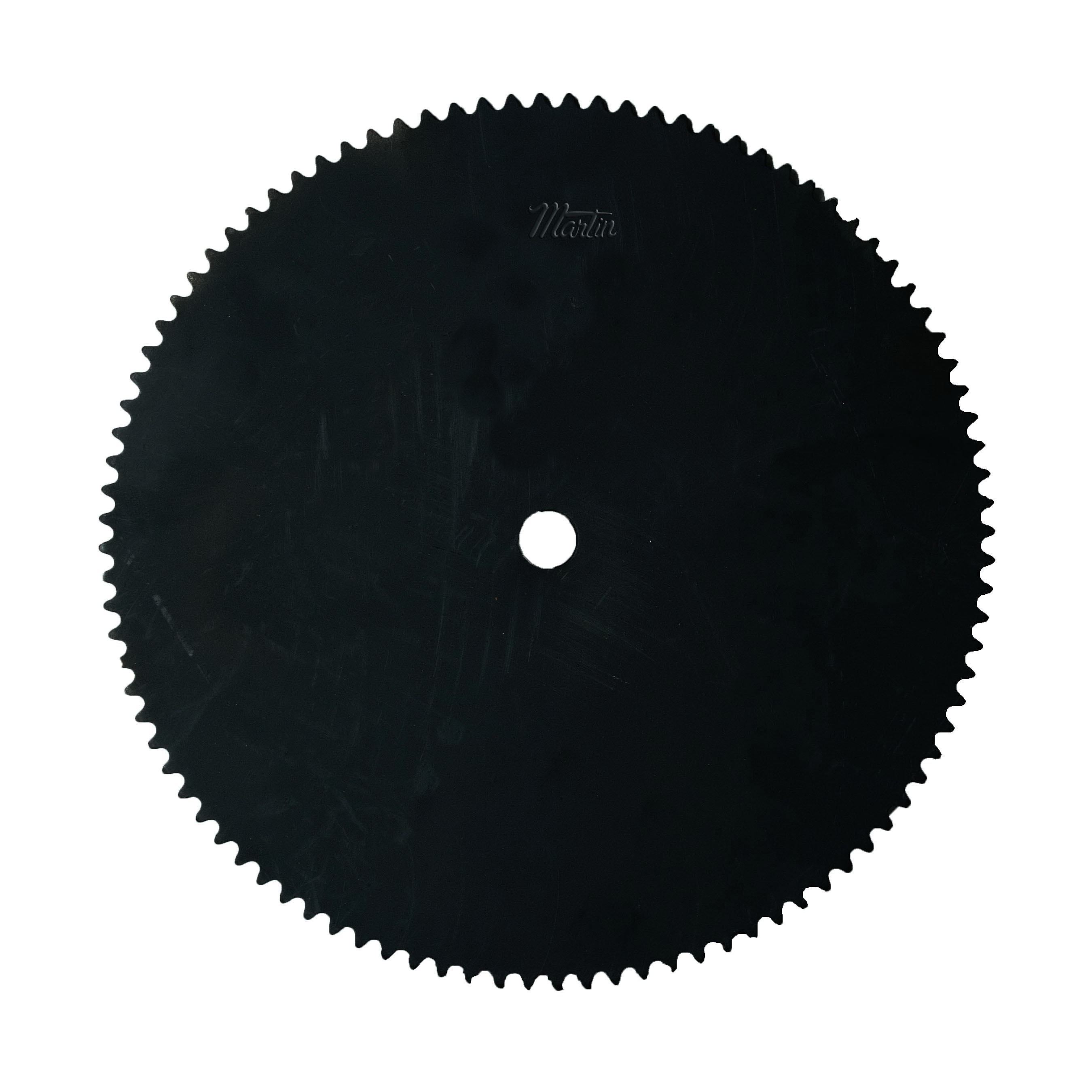

Martin 41A80 Type A Single Strand Solid Reboreable Roller Chain Sprocket, 0.71875 to 12.196 in Dia Bore, 13.026 in OD, #41 Chain, 80 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR41A80
  • MPN: 41A80
  • UPC: 697950009728
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 0.71875 to 12.196 in Bore, 13.026 in OD, #41 Chain, 80 Teeth, 1/2 in Pitch, 12.7357 in Pitch Diameter, 0.227 in Length Through Bore, Steel

Bore Diameter      :      0.71875 to 12.196 in
Chain Size      :      #41
Length Through Bore      :      0.227 in
Material      :      Steel
Number of Teeth      :      80
Outside Diameter      :      13.026 in
Pitch Diameter      :      12.7357 in
Pitch      :      1/2 in
Type      :      Type A Single Strand Solid Reboreable
  • Precise machining and processes ensure consistent finish and high quality
