Martin 40SDS45 MAR40SDS45
  1. pin-int

Martin 40SDS45 MAR40SDS45

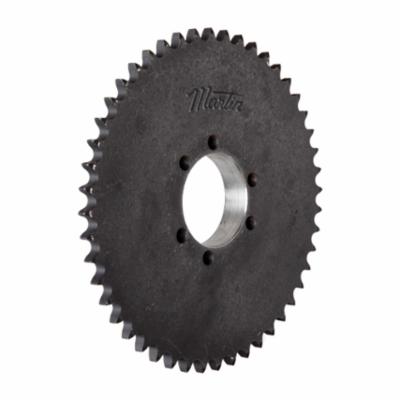

Martin 40SDS45 QD Bushed Type B Single Pitch Roller Chain Sprocket, 7.45 in OD, #40 Chain, 45 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR40SDS45
  • MPN: 40SDS45
  • UPC: 697950006581
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Single Pitch Roller Chain Sprocket, QD Bushed Type B, 7.45 in Outside Dia, #40 Chain, 45 Teeth, 1/2 in Pitch, 7.168 in, 3-1/4 in Hub Dia, 1-3/8 in Length Through Bore, Type SDS QD® Bushing, Steel

Bushing Type      :      Type SDS QD®
Chain Size      :      #40
Hub Diameter      :      3-1/4 in
Length Through Bore      :      1-3/8 in
Material      :      Steel
Number of Teeth      :      45
Outside Diameter      :      7.45 in
Pitch Diameter      :      7.168 in
Pitch      :      1/2 in
Type      :      QD Bushed Type B
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
