Martin 40P60 MAR40P60

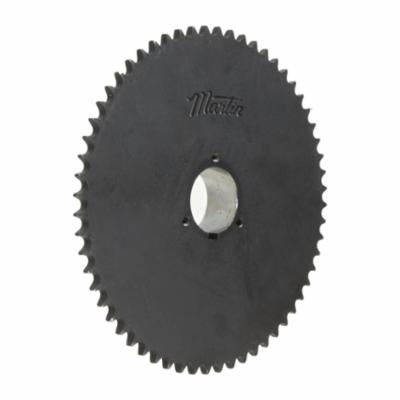

Martin 40P60 MST® P1 Bushed Type 4 Welded Split Single Roller Chain Sprocket, 1/2 to 1-3/4 in Dia Bore, 9.841 in OD, 40 Chain, 60 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR40P60
  • MPN: 40P60
  • UPC: 697950097671
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Single Roller Chain Sprocket, MST® P1 Bushed Type 4 Welded, 1/2 to 1-3/4 in Bore Dia, 9.841 in Outside Dia, 40 Chain, 60 Teeth, 1/2 in Pitch, 9.554 in, 3-1/4 in Hub Dia, 3/8 in W Keyway, 1-15/16 in Length Through Bore, Type P1 Split Taper Bushing, Steel

Bore Diameter      :      1/2 to 1-3/4 in
Bushing Type      :      Type P1 Split Taper
Chain Size      :      40
Hub Diameter      :      3-1/4 in
Keyway Size      :      3/8 in W
Length Through Bore      :      1-15/16 in
Material      :      Steel
Number of Teeth      :      60
Outside Diameter      :      9.841 in
Pitch Diameter      :      9.554 in
Pitch      :      1/2 in
Type      :      MST® P1 Bushed Type 4 Welded
  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
