Martin 40P56 MAR40P56
  1. pin-int

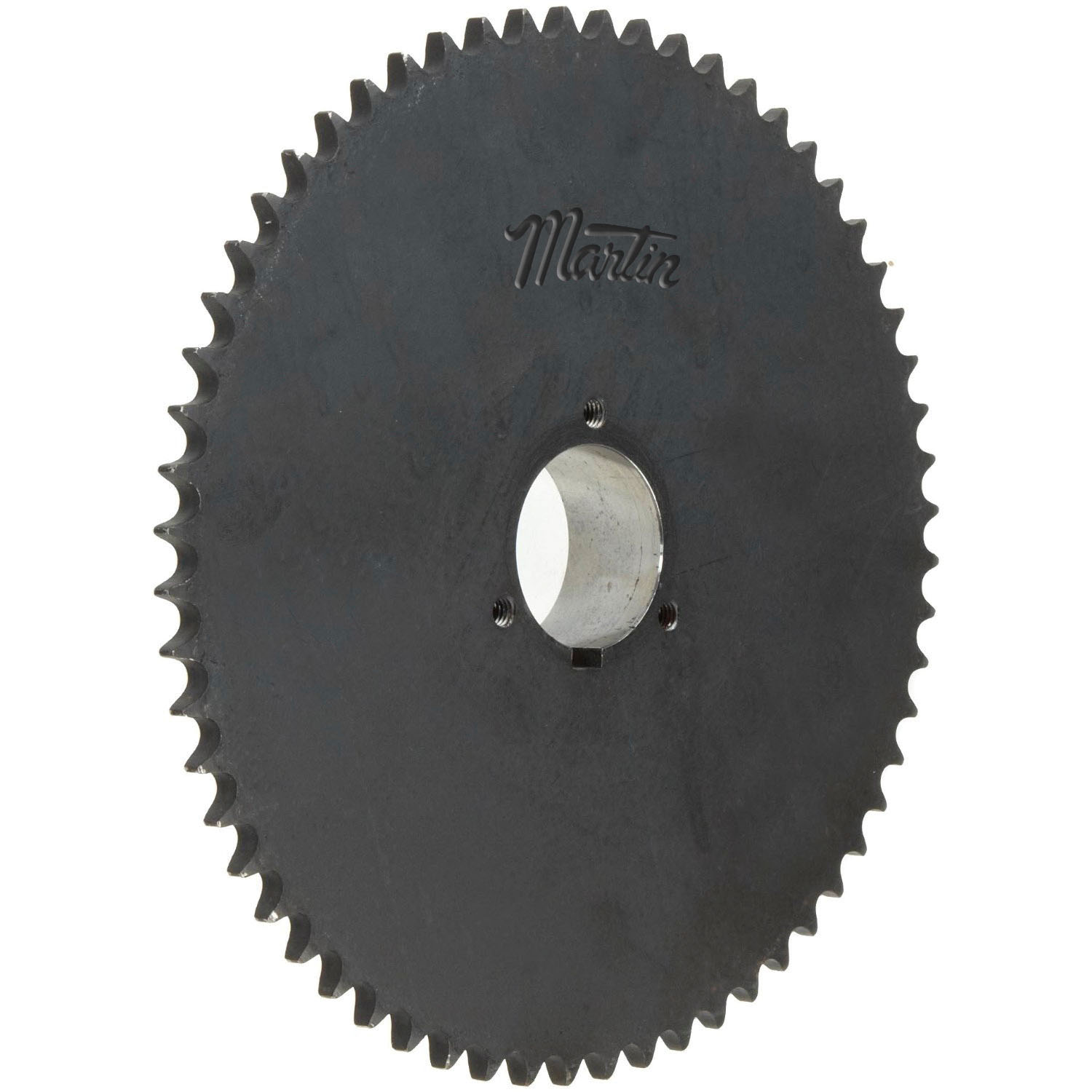

Martin 40P56 MAR40P56

Martin 40P56 Type 4 Single Strand Welded Bushed Roller Chain Sprocket, 1/2 to 1-3/4 in Dia Bore, 9.203 in OD, #40 Chain, 56 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR40P56
  • MPN: 40P56
  • UPC: 697950097664
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Roller Chain Sprocket, Type 4 Single Strand Welded Bushed, 1/2 to 1-3/4 in Bore, 9.203 in OD, #40 Chain, 56 Teeth, 1/2 in Pitch, 8.9174 in Pitch Diameter, 3-1/4 in Diameter Hub, 3/8 in Keyway, 1-5/16 in Length Through Bore, MST® P1 Bushing, Steel

Bore Diameter      :      1/2 to 1-3/4 in
Bushing Type      :      MST® P1
Chain Size      :      #40
Hub Diameter      :      3-1/4 in
Keyway Size      :      3/8 in
Length Through Bore      :      1-5/16 in
Material      :      Steel
Number of Teeth      :      56
Outside Diameter      :      9.203 in
Pitch Diameter      :      8.9174 in
Pitch      :      1/2 in
Type      :      Type 4 Single Strand Welded Bushed
  • Item Features 01=Interchangeable with other manufacturer's split-taper bushings
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Item Features 04=Bores are concentric to pitch line, minimizing run out
