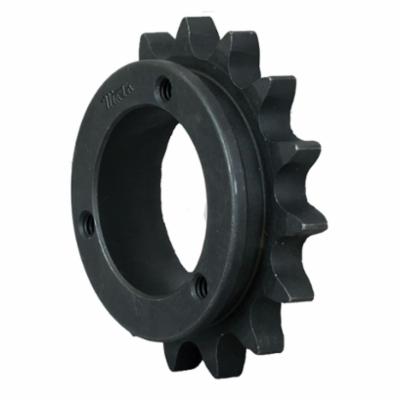

Martin 40JA15 MAR40JA15
Martin 40JA15 QD Bushed Type B Single Pitch Roller Chain Sprocket, 2.652 in OD, #40 Chain, 15 Teeth, 1/2 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR40JA15
- MPN: 40JA15
- UPC: 697950004013
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
Martin Single Pitch Roller Chain Sprocket, QD Bushed Type B, 2.652 in Outside Dia, #40 Chain, 15 Teeth, 1/2 in Pitch, 2.405 in, 2.05 in Hub Dia, 1-1/16 in Length Through Bore, Type JA QD® Bushing, Steel
| Bushing Type | : | Type JA QD® |
| Chain Size | : | #40 |
| Hub Diameter | : | 2.05 in |
| Length Through Bore | : | 1-1/16 in |
| Material | : | Steel |
| Number of Teeth | : | 15 |
| Outside Diameter | : | 2.652 in |
| Pitch Diameter | : | 2.405 in |
| Pitch | : | 1/2 in |
| Type | : | QD Bushed Type B |
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
