Martin 40BTB96 MAR40BTB96

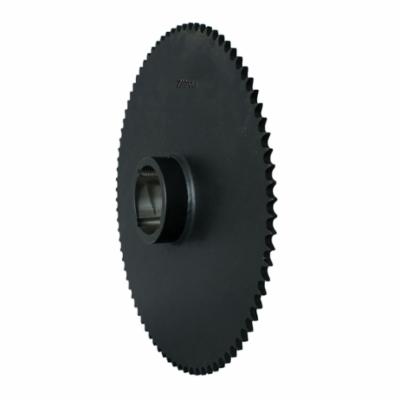

Martin 40BTB96 Taper Bushed Type B Single Pitch Roller Chain Sprocket, 15.573 in OD, #40 Chain, 96 Teeth, 1/2 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR40BTB96
- MPN: 40BTB96
- UPC: 697950030876
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 15.573 in Outside Dia, #40 Chain, 96 Teeth, 1/2 in Pitch, 15.282 in, 3.532 in Hub Dia, 1-1/4 in Length Through Bore, 2012 Taper Lock Bushing, Steel
| Bushing Type | : | 2012 Taper Lock |
| Chain Size | : | #40 |
| Hub Diameter | : | 3.532 in |
| Length Through Bore | : | 1-1/4 in |
| Material | : | Steel |
| Number of Teeth | : | 96 |
| Outside Diameter | : | 15.573 in |
| Pitch Diameter | : | 15.282 in |
| Pitch | : | 1/2 in |
| Type | : | Taper Bushed Type B |
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
