Martin 40A51 MAR40A51
  1. pin-int

Martin 40A51 MAR40A51

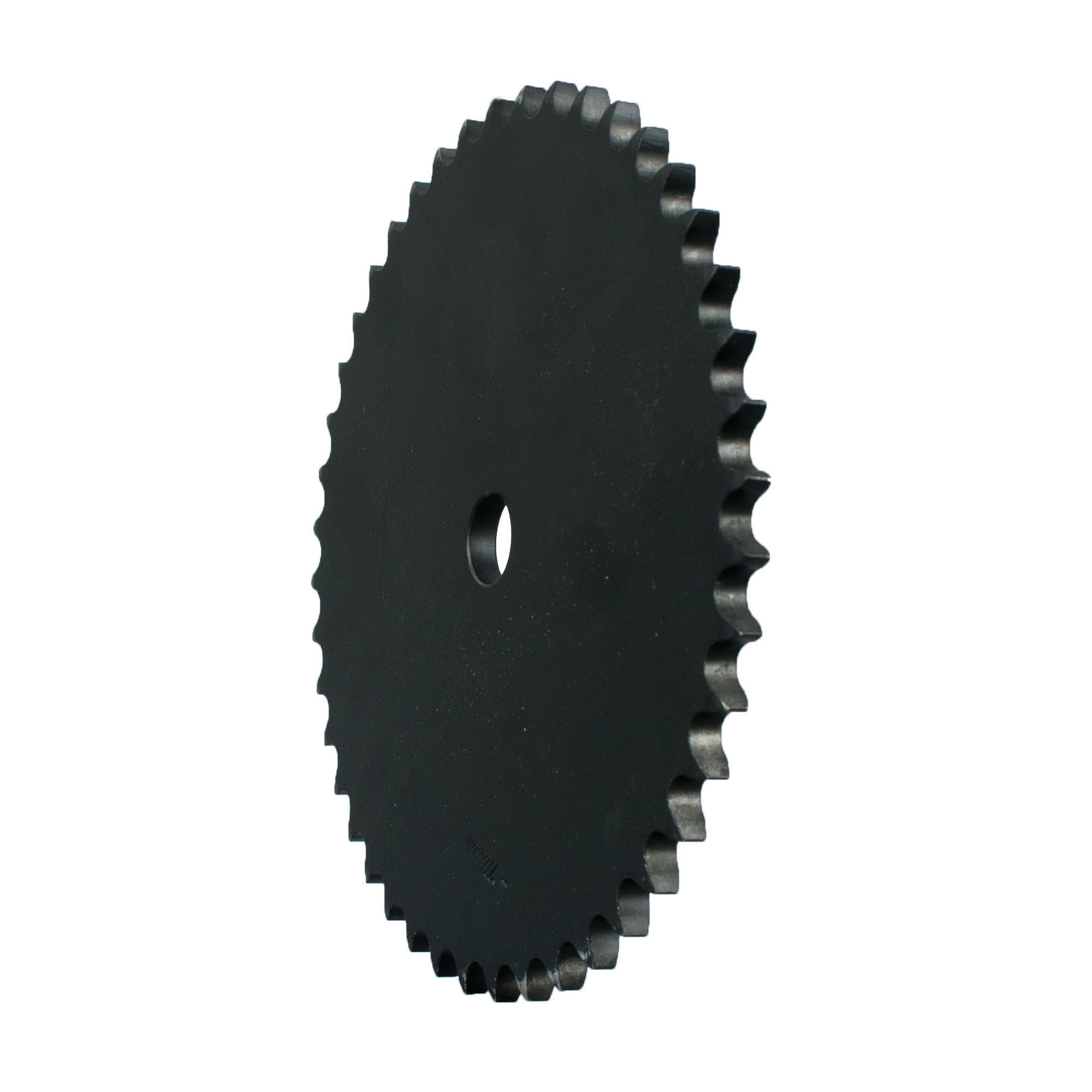

Martin 40A51 Type A Single Strand Solid Reboreable Roller Chain Sprocket, 0.71875 to 7.577 in Dia Bore, 8.407 in OD, #40 Chain, 51 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR40A51
  • MPN: 40A51
  • UPC: 697950006727
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 0.71875 to 7.577 in Bore, 8.407 in OD, #40 Chain, 51 Teeth, 1/2 in Pitch, 8.122 in Pitch Diameter, 0.284 in Length Through Bore, Steel

Bore Diameter      :      0.71875 to 7.577 in
Chain Size      :      #40
Length Through Bore      :      0.284 in
Material      :      Steel
Number of Teeth      :      51
Outside Diameter      :      8.407 in
Pitch Diameter      :      8.122 in
Pitch      :      1/2 in
Type      :      Type A Single Strand Solid Reboreable
  • Item Features 01=Precise machining and processes ensure consistent finish and high quality
