Martin 40A33 MAR40A33
  1. pin-int

Martin 40A33 MAR40A33

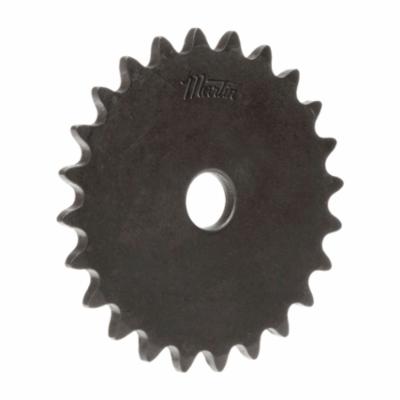

Martin 40A33 Stock Bore Type A Single Pitch Roller Chain Sprocket, 19/32 in Dia Bore, 5.536 in OD, #40 Chain, 33 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR40A33
  • MPN: 40A33
  • UPC: 697950006246
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Single Pitch Roller Chain Sprocket, Stock Bore Type A, 19/32 in Bore Dia, 5.536 in Outside Dia, #40 Chain, 33 Teeth, 1/2 in Pitch, 5.26 in, 3-1/4 in Hub Dia, 0.284 in Length Through Bore, Steel

Bore Diameter      :      19/32 in
Chain Size      :      #40
Hub Diameter      :      3-1/4 in
Length Through Bore      :      0.284 in
Material      :      Steel
Number of Teeth      :      33
Outside Diameter      :      5.536 in
Pitch Diameter      :      5.26 in
Pitch      :      1/2 in
Type      :      Stock Bore Type A
  • Plate only
  • Precise machining and processes ensure consistent finish and high quality
