Martin 4 3V 300 SH MAR4-3V300
  1. pin-int

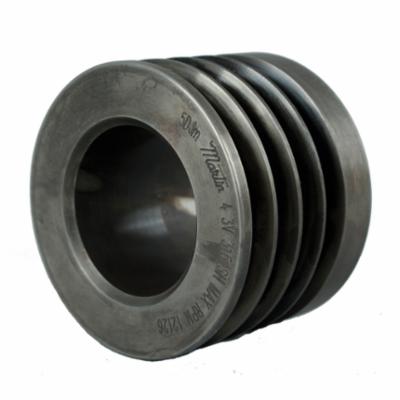

Martin 4 3V 300 SH MAR4-3V300

Martin Hi-Cap® 4 3V 300 SH Solid Type E-1 Wedge Stock Sheave, 0.5 to 1.688 in QD® Bushed Bore, 3 in OD, 4 Grooves, 2.95 in Dia Pitch, 1.906 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR4-3V300
  • MPN: 4 3V 300 SH
  • UPC: 697950115450
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Wedge Stock Sheave, Solid Type E-1, QD® Bushed Bore, 0.5 to 1.688 in Bore, 3 in OD, 2.95 in Pitch Diameter, 4 Grooves, 1.906 in Face Width, SH Bushing, 2.78 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel

Bore Diameter      :      0.5 to 1.688 in
Bore Type      :      QD® Bushed
Bushing Type      :      SH
Face Width      :      1.906 in
Material      :      Steel
Number of Grooves      :      4
Outside Diameter      :      3 in
Overall Length      :      2.78 in
Pitch Diameter      :      2.95 in
Suitable For Use With      :      3V-Cross Section V-Belts
Type      :      Solid Type E-1
  • Class 30 Gray Iron
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print
