Martin 35BS21 1/2 MAR35BS211/2

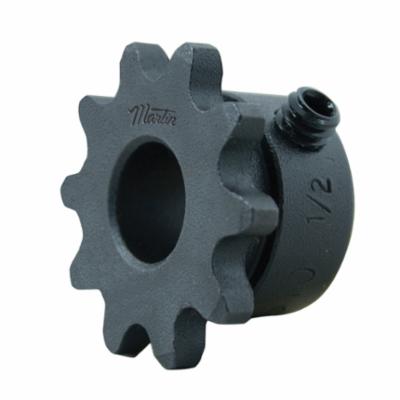

Martin 35BS21 1/2 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket, 1/2 in Dia Bore, 2.713 in OD, #35 Chain, 21 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR35BS211/2
  • MPN: 35BS21 1/2
  • UPC: 697950299082
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.

Martin Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 1/2 in Bore Dia, 2.713 in Outside Dia, #35 Chain, 21 Teeth, 3/8 in Pitch, 2.516 in, 2 in Hub Dia, 1/4-20 x 1/4 in Screw, 1/8 x 1/16 in Keyway, 7/8 in Length Through Bore, Steel

Bore Diameter      :      1/2 in
Chain Size      :      #35
Hub Diameter      :      2 in
Keyway Size      :      1/8 x 1/16 in
Length Through Bore      :      7/8 in
Material      :      Steel
Number of Teeth      :      21
Outside Diameter      :      2.713 in
Pitch Diameter      :      2.516 in
Pitch      :      3/8 in
Screw Size      :      1/4-20 x 1/4 in
Type      :      Bored-to-Size Type BS
  • Stock finished bores
  • Non-hardened teeth
  • Precise machining and processes ensure consistent finish and high quality
  • Bores are concentric to pitch line, minimizing run out
  • 2 set screws keyed on centerline of tooth
