Martin 35B21SS MAR35B21SS
  1. pin-int

Martin 35B21SS MAR35B21SS

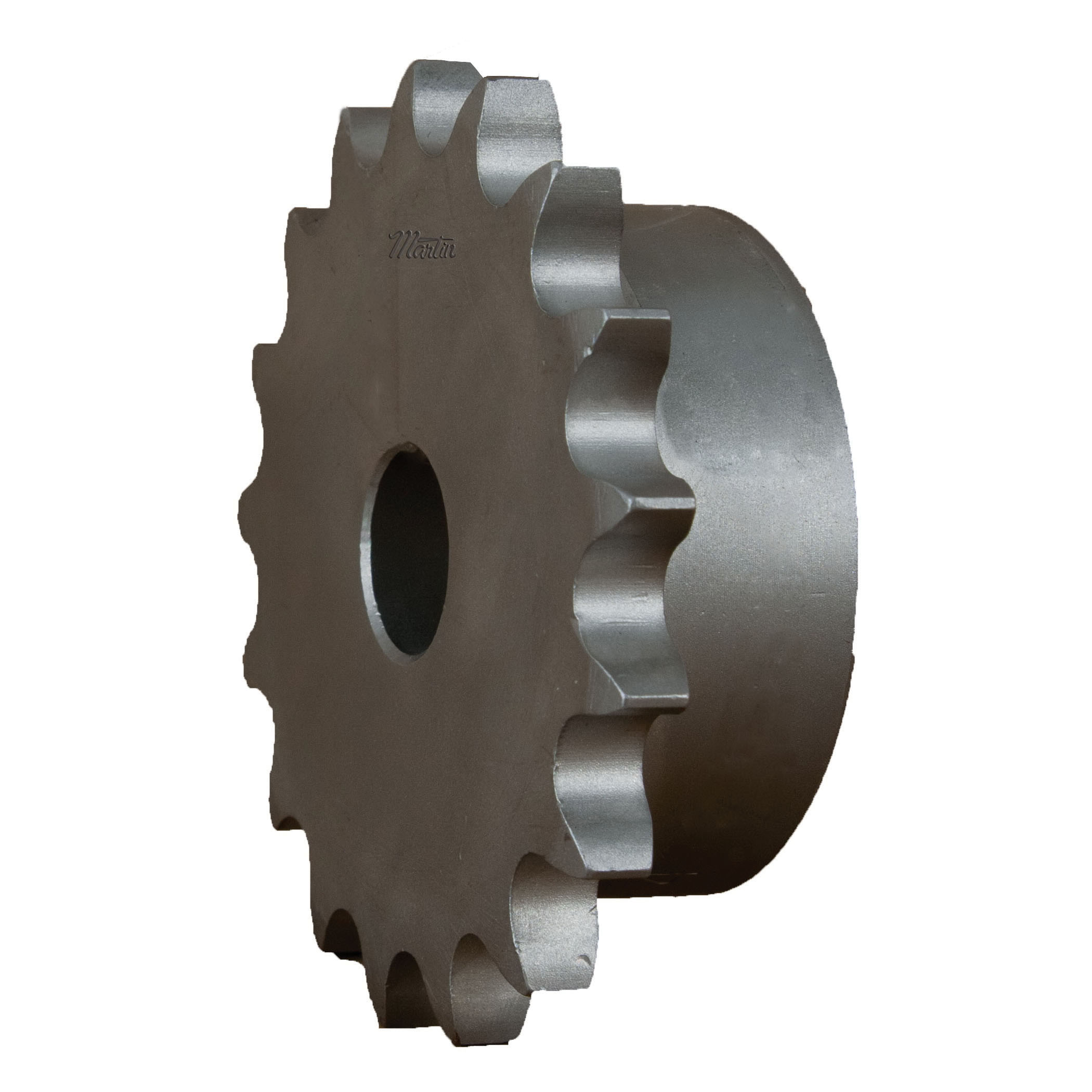

Martin 35B21SS Type B Single Strand Solid Reboreable Roller Chain Sprocket, 1/2 to 1-3/8 in Dia Bore, 2.713 in OD, #35 Chain, 21 Teeth, 3/8 in Pitch, 303/304 Stainless Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR35B21SS
  • MPN: 35B21SS
  • UPC: 697950065373
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Stainless steel sprockets are stocked as plates with no hubs and as "B"s with a hub on one side. They are all ready to be bored or modified to fit specific applications.

Martin Roller Chain Sprocket, Type B Single Strand Solid Reboreable, 1/2 to 1-3/8 in Bore, 2.713 in OD, #35 Chain, 21 Teeth, 3/8 in Pitch, 2.516 in Pitch Diameter, 2 in Diameter Hub, 3/4 in Length Through Bore, 303/304 Stainless Steel

Bore Diameter      :      1/2 to 1-3/8 in
Chain Size      :      #35
Hub Diameter      :      2 in
Length Through Bore      :      3/4 in
Material      :      303/304 Stainless Steel
Number of Teeth      :      21
Outside Diameter      :      2.713 in
Pitch Diameter      :      2.516 in
Pitch      :      3/8 in
Type      :      Type B Single Strand Solid Reboreable
  • Precise machining and processes ensure consistent finish and high quality
  • Bores are concentric to pitch line, minimizing run out
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
