Martin 35A84 MAR35A84
  1. pin-int

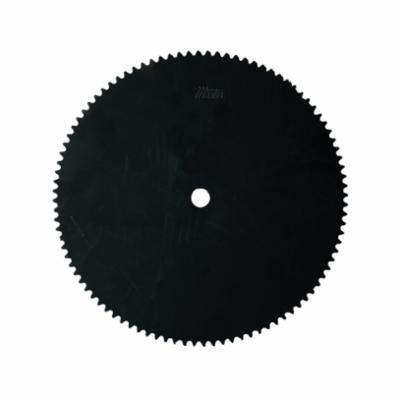

Martin 35A84 MAR35A84

Martin 35A84 Stock Bore Type A Single Pitch Roller Chain Sprocket, 23/32 in Dia Bore, 10.247 in OD, #35 Chain, 84 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR35A84
  • MPN: 35A84
  • UPC: 697950002729
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Single Pitch Roller Chain Sprocket, Stock Bore Type A, 23/32 in Bore Dia, 10.247 in Outside Dia, #35 Chain, 84 Teeth, 3/8 in Pitch, 10.029 in, 2-1/4 in Hub Dia, 0.168 in Length Through Bore, Steel

Bore Diameter      :      23/32 in
Chain Size      :      #35
Hub Diameter      :      2-1/4 in
Length Through Bore      :      0.168 in
Material      :      Steel
Number of Teeth      :      84
Outside Diameter      :      10.247 in
Pitch Diameter      :      10.029 in
Pitch      :      3/8 in
Type      :      Stock Bore Type A
  • Plate only
  • Precise machining and processes ensure consistent finish and high quality
