Martin 35A42 MAR35A42
  1. pin-int

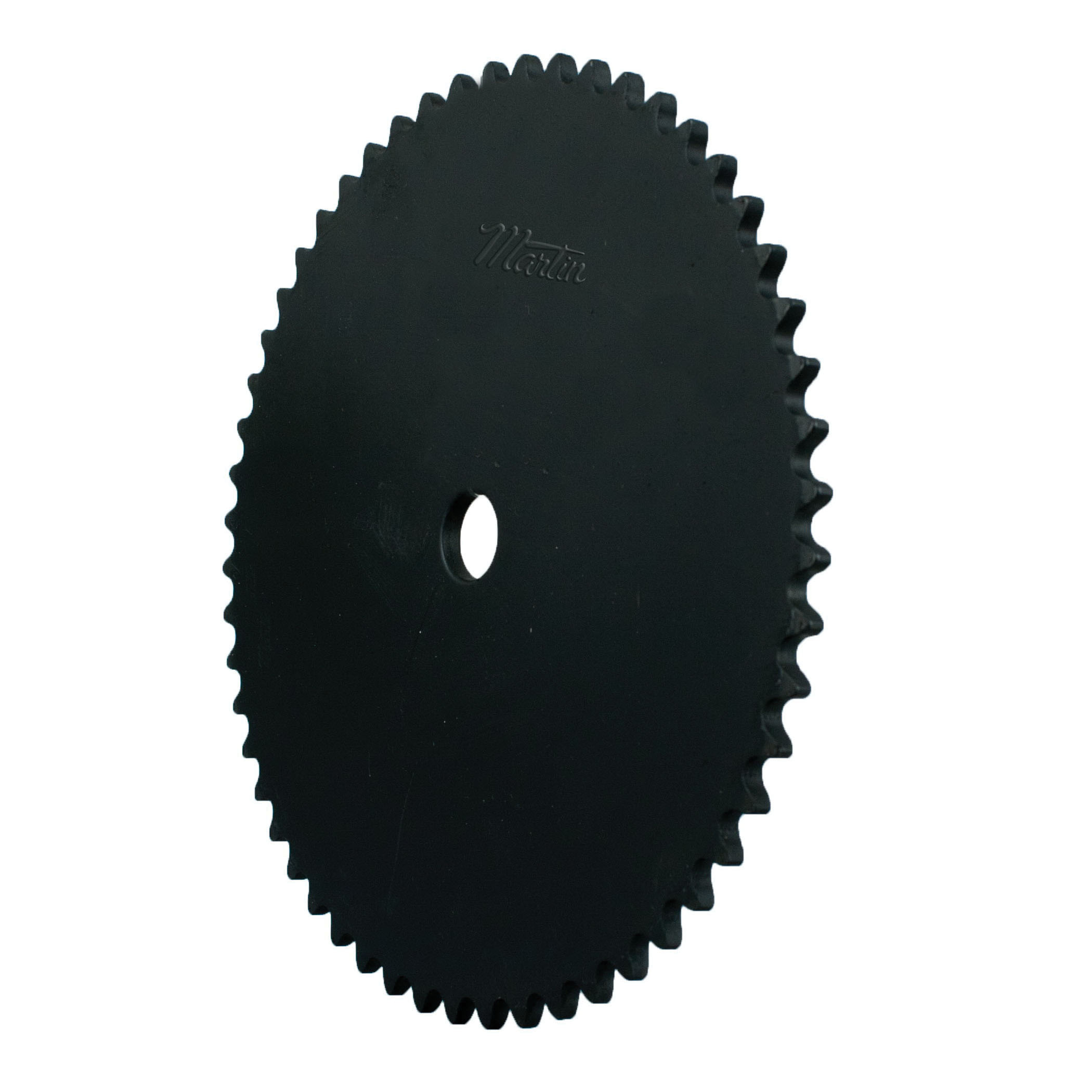

Martin 35A42 MAR35A42

Martin 35A42 Type A Single Strand Solid Reboreable Roller Chain Sprocket, 0.59375 to 4.599 in Dia Bore, 5.229 in OD, #35 Chain, 42 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR35A42
  • MPN: 35A42
  • UPC: 697950002422
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 0.59375 to 4.599 in Bore, 5.229 in OD, #35 Chain, 42 Teeth, 3/8 in Pitch, 5.0181 in Pitch Diameter, 0.168 in Length Through Bore, Steel

Bore Diameter      :      0.59375 to 4.599 in
Chain Size      :      #35
Length Through Bore      :      0.168 in
Material      :      Steel
Number of Teeth      :      42
Outside Diameter      :      5.229 in
Pitch Diameter      :      5.0181 in
Pitch      :      3/8 in
Type      :      Type A Single Strand Solid Reboreable
  • Precise machining and processes ensure consistent finish and high quality
