Martin 32A12 MAR32A12

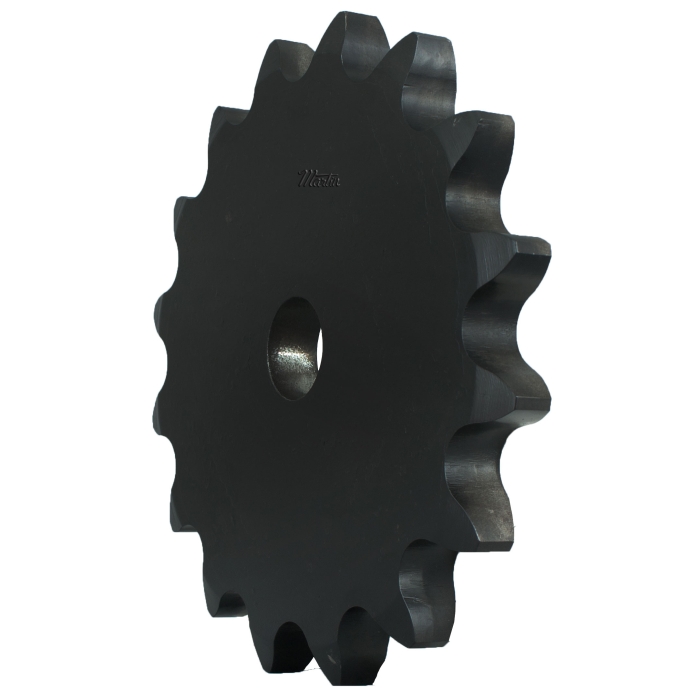

Martin 32A12 Type A Single Strand Solid Stock Bore Roller Chain Sprocket, 32 mm Dia Bore, 230.566 mm OD, #32B-1 Chain, 12 Teeth, 50.8 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR32A12
- MPN: 32A12
- UPC: 697950407784
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Metric A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
Martin Roller Chain Sprocket, Type A Single Strand Solid Stock Bore, 32 mm Bore, 230.566 mm OD, #32B-1 Chain, 12 Teeth, 50.8 mm Pitch, 196.276 mm Pitch Diameter, 80 mm Length Through Bore, Steel
| Bore Diameter | : | 32 mm |
| Chain Size | : | #32B-1 |
| Length Through Bore | : | 80 mm |
| Material | : | Steel |
| Number of Teeth | : | 12 |
| Outside Diameter | : | 230.566 mm |
| Pitch Diameter | : | 196.276 mm |
| Pitch | : | 50.8 mm |
| Type | : | Type A Single Strand Solid Stock Bore |
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
