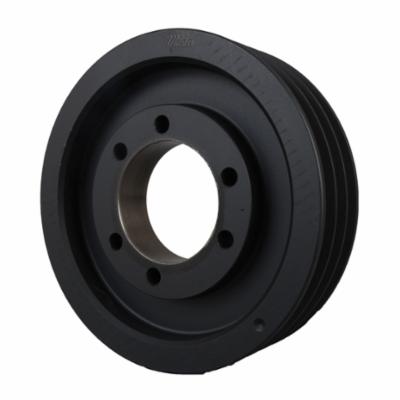

Martin 3 5V 1130 SF MAR3-5V1130

Martin Hi-Cap® 3 5V 1130 SF Type A-2 Web Wedge Stock Sheave, 0.5 to 2.938 in QD® Bushed Bore, 11.3 in OD, 3 Grooves, 11.2 in Dia Pitch, 2-3/8 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR3-5V1130
  • MPN: 3 5V 1130 SF
  • UPC: 697950113944
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Wedge Stock Sheave, Type A-2 Web, QD® Bushed Bore, 0.5 to 2.938 in Bore, 11.3 in OD, 11.2 in Pitch Diameter, 3 Grooves, 2-3/8 in Face Width, SF Bushing, 2.38 in Overall Length, For Use With: 5V-Cross Section V-Belts, Cast Iron

Bore Diameter      :      0.5 to 2.938 in
Bore Type      :      QD® Bushed
Bushing Type      :      SF
Face Width      :      2-3/8 in
Material      :      Cast Iron
Number of Grooves      :      3
Outside Diameter      :      11.3 in
Overall Length      :      2.38 in
Pitch Diameter      :      11.2 in
Suitable For Use With      :      5V-Cross Section V-Belts
Type      :      Type A-2 Web
  • Class 30 Gray Iron
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print
