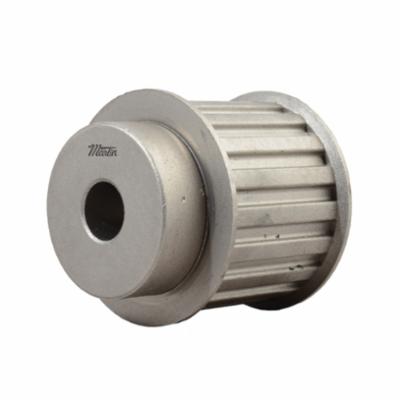

Martin 20H100 MAR20H100
Martin 20H100 Solid Type DF-1 Stock Timing Pulley, 5/8 to 1-5/8 in Minimum Plain/Reborable Bore, 3.129 in OD, 20 Grooves, 3.183 in Dia Pitch, 1.062 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR20H100
- MPN: 20H100
- UPC: 697950151212
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 5/8 to 1-5/8 in Bore Dia, 3.129 in Outside Dia, 3.183 in, 20 Grooves, 1/2 in Pitch, 1.062 in Face Width, 3.415 in Flange Dia, 2-1/2 in Hub Dia, 7/8 in Hub Projection, 2-3/16 in Overall Length, For Use With: 1 in W Type H Belt, Steel
| Bore Diameter | : | 5/8 to 1-5/8 in |
| Bore Type | : | Minimum Plain/Reborable |
| Face Width | : | 1.062 in |
| Flange Diameter | : | 3.415 in |
| Hub Diameter | : | 2-1/2 in |
| Hub Projection | : | 7/8 in |
| Material | : | Steel |
| Number of Grooves | : | 20 |
| Outside Diameter | : | 3.129 in |
| Overall Length | : | 2-3/16 in |
| Pitch Diameter | : | 3.183 in |
| Pitch | : | 1/2 in |
| Suitable For Use With | : | 1 in W Type H Belt |
| Type | : | Solid Type DF-1 |
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
