Martin 200U35 MAR200U35

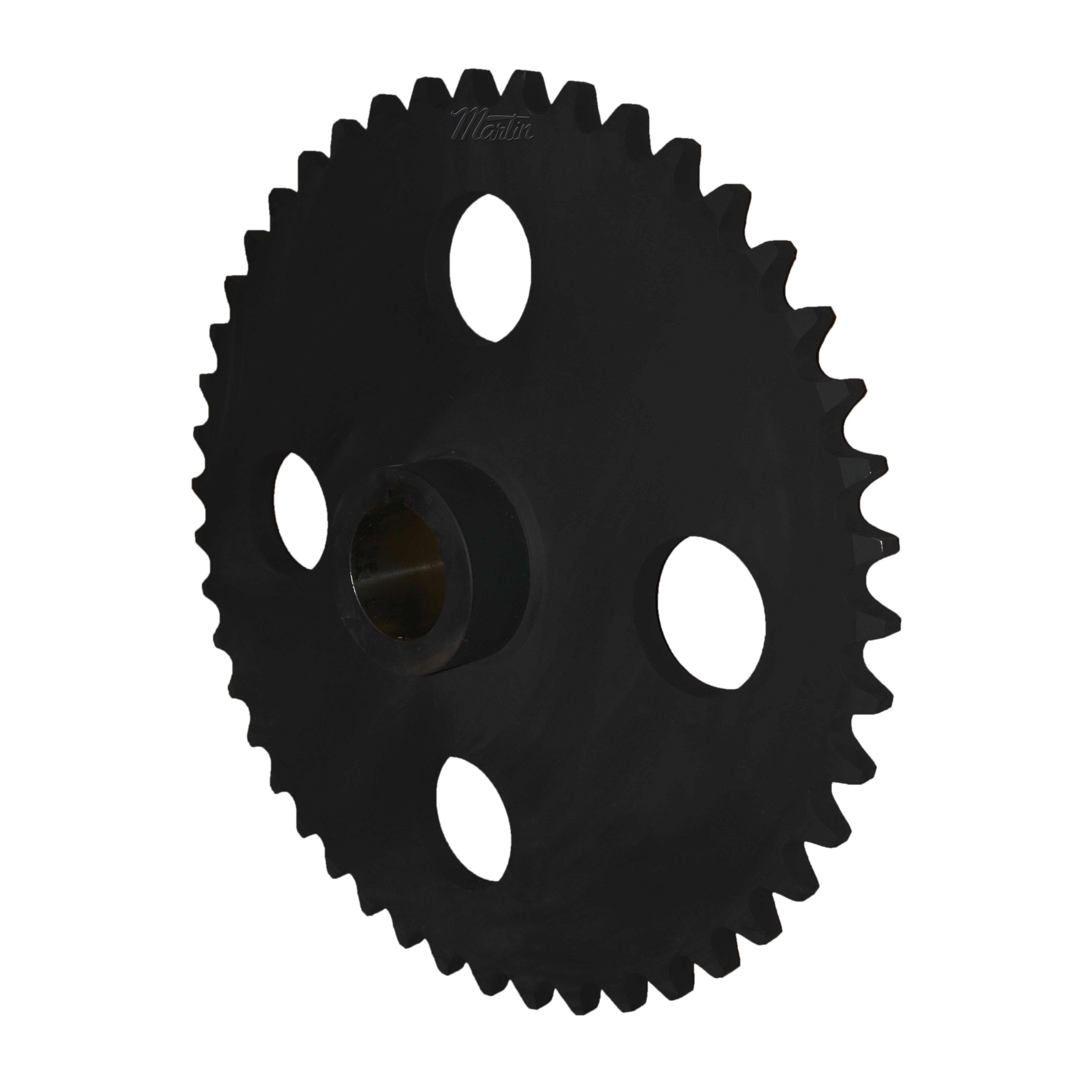

Martin 200U35 Type 6 Single Strand Welded Bushed Roller Chain Sprocket With Lightening Hole, 2-3/8 to 5-1/2 in Dia Bore, 29.277 in OD, #200 Chain, 35 Teeth, 2-1/2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR200U35
  • MPN: 200U35
  • UPC: 697950164922
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Roller Chain Sprocket, Type 6 Single Strand Welded Bushed, 2-3/8 to 5-1/2 in Bore, 29.277 in OD, #200 Chain, 35 Teeth, 2-1/2 in Pitch, 27.8896 in Pitch Diameter, 8-1/2 in Diameter Hub, 2-1/4 in Keyway, 5-5/8 in Length Through Bore, MST® U1 Bushing, Steel

Bore Diameter      :      2-3/8 to 5-1/2 in
Bushing Type      :      MST® U1
Chain Size      :      #200
Hub Diameter      :      8-1/2 in
Keyway Size      :      2-1/4 in
Length Through Bore      :      5-5/8 in
Material      :      Steel
Number of Teeth      :      35
Outside Diameter      :      29.277 in
Pitch Diameter      :      27.8896 in
Pitch      :      2-1/2 in
Type      :      Type 6 Single Strand Welded Bushed
  • Interchangeable with other manufacturer's split-taper bushings
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
