Martin 2 5V 490 TB MAR2-5V490TB

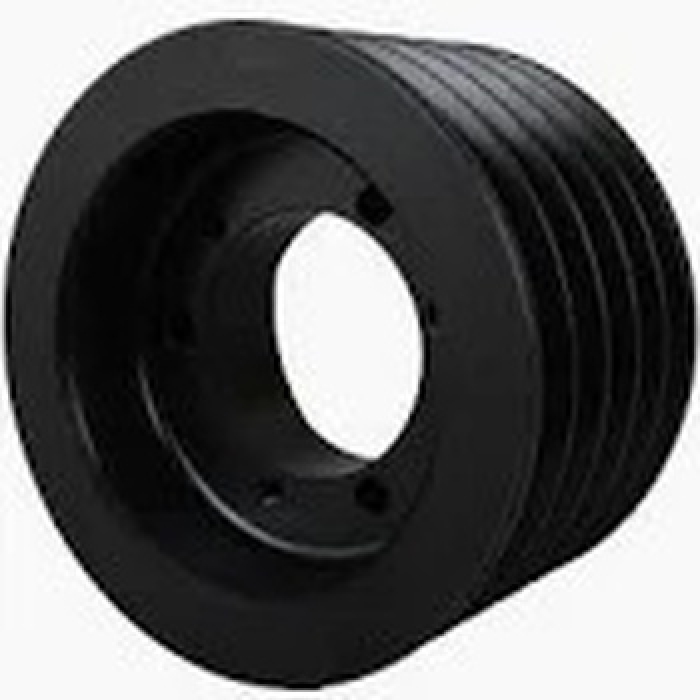

Martin Hi-Cap® 2 5V 490 TB Type A Solid Wedge Sheave, 1-5/8 in Bushed Bore, 4.9 in OD, 2 Grooves, 4.8 in Dia Pitch, 1-11/16 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR2-5V490TB
- MPN: 2 5V 490 TB
- UPC: 697950508214
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Conventional (wide/classical) sheaves are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 FPM. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 FPM, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-Belt sheaves to accept “A”, “B”, “C”, and “D” belts.
Martin Hi-Cap® Wedge Sheave, Type A Solid, Bushed Bore, 1-5/8 in Bore, 4.9 in OD, 4.8 in Pitch Diameter, 2 Grooves, 1-11/16 in Face Width, 1610 Taper Bushing, 1-11/16 in Overall Length, For Use With: 5VX Cross Section Belts
| Bore Diameter | : | 1-5/8 in |
| Bore Type | : | Bushed |
| Bushing Type | : | 1610 Taper |
| Face Width | : | 1-11/16 in |
| Number of Grooves | : | 2 |
| Outside Diameter | : | 4.9 in |
| Overall Length | : | 1-11/16 in |
| Pitch Diameter | : | 4.8 in |
| Suitable For Use With | : | 5VX Cross Section Belts |
| Type | : | Type A Solid |
- Quick alterations and MTO's - fast hardening on unhardened sizes, special sheave and bushing combinations
- Lower transaction cost - no minimum order or handling charge
- Blind assembly - bushing will only mount one way in sheave, bolts all line up when bushing is installed
- Key to key drive - bushing provides drive keyed to both the shaft and the driven sheave
- Comprehensive offering - Martin split taper joins complete QD® and taper bushed lines
