Martin 2 3V 335 SH MAR2-3V335
  1. pin-int

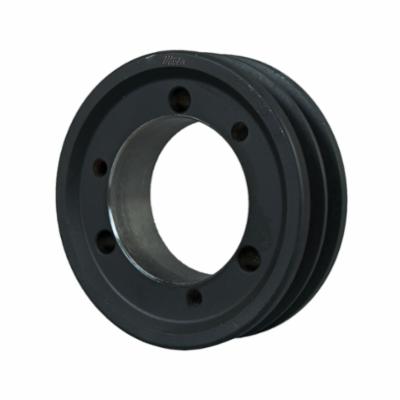

Martin 2 3V 335 SH MAR2-3V335

Martin Hi-Cap® 2 3V 335 SH Solid Type D-1 Wedge Stock Sheave, 0.5 to 1.688 in QD® Bushed Bore, 3.35 in OD, 2 Grooves, 3.3 in Dia Pitch, 1.94 in W Face

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR2-3V335
  • MPN: 2 3V 335 SH
  • UPC: 697950106236
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Hi-Cap® sheaves (narrow V-belts) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 65 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5 fpm, or if they will be used on equipment where vibration is a problem. Martin has extensive inventories of both QD and TB style V-belt sheaves to run with 3V, 5V, and 8V belts.

Martin Hi-Cap® Wedge Stock Sheave, Solid Type D-1, QD® Bushed Bore, 0.5 to 1.688 in Bore, 3.35 in OD, 3.3 in Pitch Diameter, 2 Grooves, 1.94 in Face Width, SH Bushing, 1.515625 in Overall Length, For Use With: 3V-Cross Section V-Belts, Steel

Bore Diameter      :      0.5 to 1.688 in
Bore Type      :      QD® Bushed
Bushing Type      :      SH
Face Width      :      1.94 in
Material      :      Steel
Number of Grooves      :      2
Outside Diameter      :      3.35 in
Overall Length      :      1.515625 in
Pitch Diameter      :      3.3 in
Suitable For Use With      :      3V-Cross Section V-Belts
Type      :      Solid Type D-1
  • Class 30 Gray Iron
  • Tolerances adhere to industry guidelines
  • Precise machining and processes ensure consistent finish and high quality
  • Statically balanced with maximum rim speed marked on print
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_3_5V_710_SF_Catalog.pdf
