Martin 16CH306 MAR16CH306
  1. pin-int

Martin 16CH306 MAR16CH306

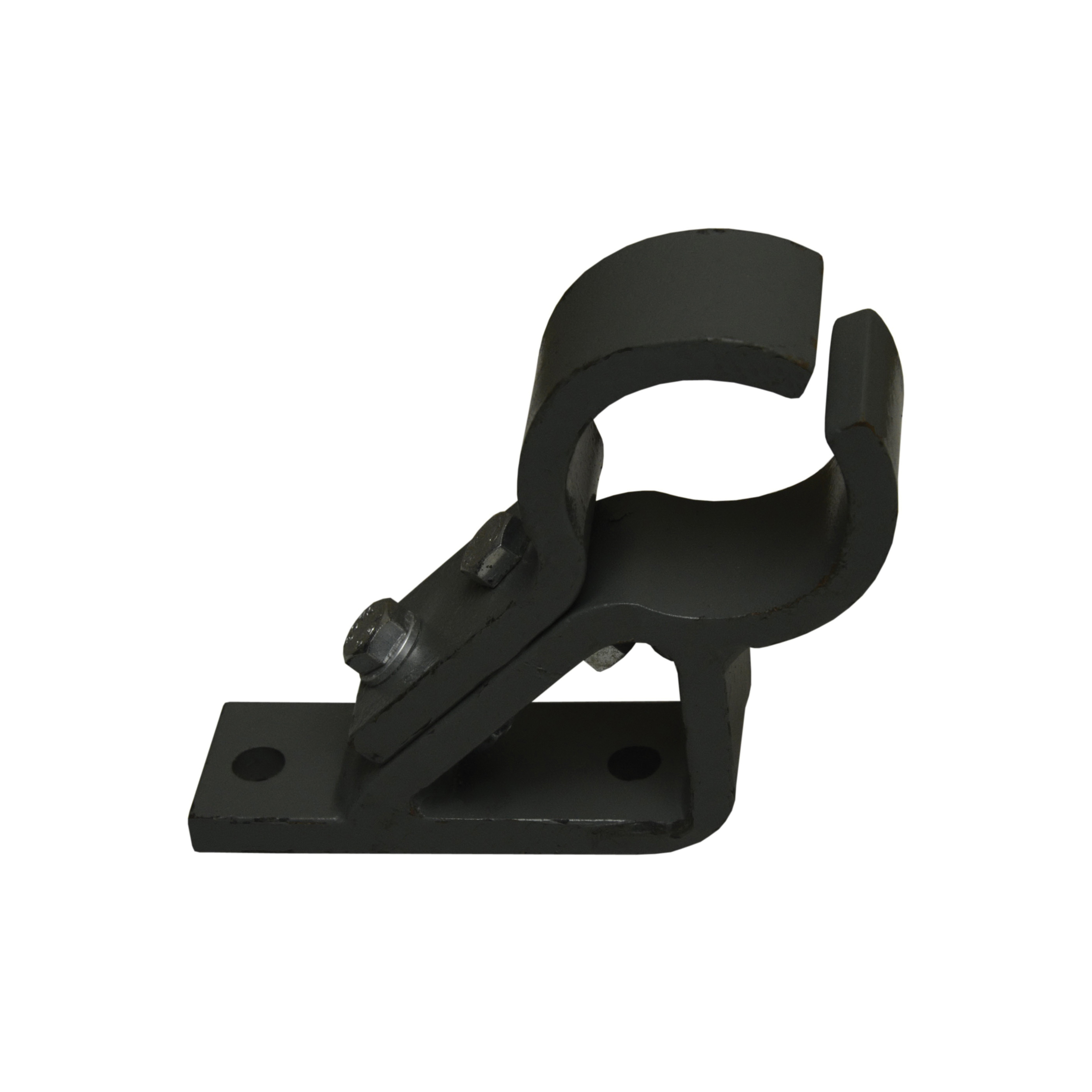

Martin 16CH306 Conveyor Hanger, 30 Style, 16 in Dia Conveyor, 3 in Coupling

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR16CH306
  • MPN: 16CH306
  • UPC: 697950099996
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

No. 30 hangers are designed for side mounting within the conveyor trough on the non-carrying side and permit a minimum of obstruction of material flow. Available with friction type bearing.

Martin Conveyor Hanger, 30 Style, 16 in Conveyor Diameter, 3 in Coupling, 8 in Mounting Hole Center, 1/2 x 2 in Bolt, 2 in Top Frame Width, 5/8 in Top Frame Thickness, 2 Mounting Bolts, Steel

Bolt Size      :      1/2 x 2 in
Conveyor Diameter      :      16 in
Coupling Size      :      3 in
Material      :      Steel
Mounting Hole Center      :      8 in
Number of Mounting Bolts      :      2
Style      :      30
Top Frame Thickness      :      5/8 in
Top Frame Width      :      2 in
  • Laser cut flat pieces to ensure consistent finish and high quality
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_CHB607_Catalog.pdf
