Martin 16CH2266-O MAR16CH2266-O

Martin 16CH2266-O Conveyor Hanger, 226 Style, 16 in Dia Conveyor, 3 in Coupling

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR16CH2266-O
  • MPN: 16CH2266-O
  • UPC: 697950099965
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

No. 226 hangers are designed for flush mounting inside the trough permitting dust-tight or weather-proof operation. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.

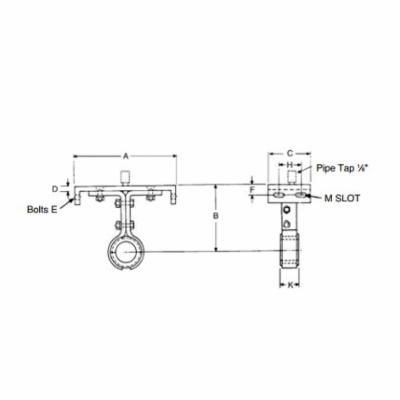

Martin Conveyor Hanger, 226 Style, 16 in Conveyor Diameter, 3 in Coupling, 2-1/2 in Mounting Hole Center, 17 in Top Frame Length, 5 in Top Frame Width, 1/2 in Top Frame Thickness, 9/16 x 1-5/16 in Slot

Conveyor Diameter      :      16 in
Coupling Size      :      3 in
Mounting Hole Center      :      2-1/2 in
Slot Size      :      9/16 x 1-5/16 in
Style      :      226
Top Frame Length      :      17 in
Top Frame Thickness      :      1/2 in
Top Frame Width      :      5 in
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_CHB2163H_Catalog.pdf
