Martin 16CH19B6 MAR16CH19B6

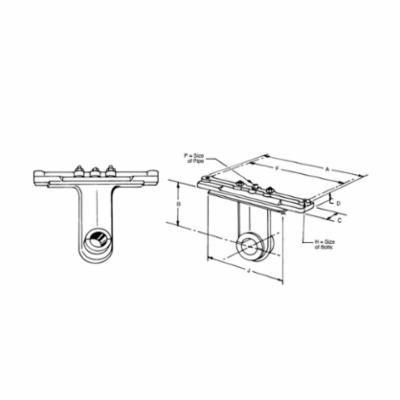

Martin 16CH19B6 Conveyor Hanger, 19B Style, 16 in Dia Conveyor, 3 in Coupling

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR16CH19B6
  • MPN: 16CH19B6
  • UPC: 697950130149
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The No. 19-B Hanger is similar in construction to the No. 18-B except they are mounted on top of the trough angles. Built-in ledges provide supports for the ends of the cover. They are streamlined in design and permit free passage of the material.

Martin Conveyor Hanger, 19B Style, 16 in Conveyor Diameter, 3 in Coupling, 11/16 in Mounting Hole Center, 21-1/2 in Top Frame Length, 3 in Top Frame Width, 1-1/2 in Top Frame Thickness

Conveyor Diameter      :      16 in
Coupling Size      :      3 in
Mounting Hole Center      :      11/16 in
Style      :      19B
Top Frame Length      :      21-1/2 in
Top Frame Thickness      :      1-1/2 in
Top Frame Width      :      3 in
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_10CH2203_Specification_Sheet.pdf
