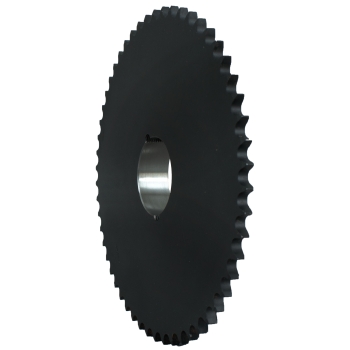

Martin 16BTB15H MAR16BTB15H
Martin 16BTB15H Type B Single Strand Solid Stock Bore Roller Chain Sprocket With Hardened Teeth, 41.28 mm Dia Bore, 138.04 mm OD, #16B-1 Chain, 15 Teeth, 25.4 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR16BTB15H
- MPN: 16BTB15H
- UPC: 697950410814
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
A metric taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Roller Chain Sprocket, Type B Single Strand Solid Stock Bore, 41.28 mm Bore, 138.04 mm OD, #16B-1 Chain, 15 Teeth, 25.4 mm Pitch, 122.17 mm Pitch Diameter, 83 mm Diameter Hub, 38.1 mm Length Through Bore, 1615 Taper Bushing, Steel
| Bore Diameter | : | 41.28 mm |
| Bushing Type | : | 1615 Taper |
| Chain Size | : | #16B-1 |
| Hub Diameter | : | 83 mm |
| Length Through Bore | : | 38.1 mm |
| Material | : | Steel |
| Number of Teeth | : | 15 |
| Outside Diameter | : | 138.04 mm |
| Pitch Diameter | : | 122.17 mm |
| Pitch | : | 25.4 mm |
| Type | : | Type B Single Strand Solid Stock Bore |
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
