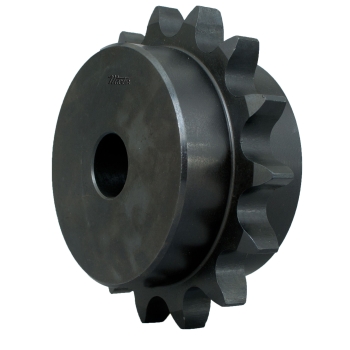

Martin 16B28 MAR16B28
Martin 16B28 Type B Single Strand Stock Bore Welded Roller Chain Sprocket, 32 to 84 mm Dia Bore, 242.733 mm OD, #16B-1 Chain, 28 Teeth, 25.4 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR16B28
- MPN: 16B28
- UPC: 697950402314
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

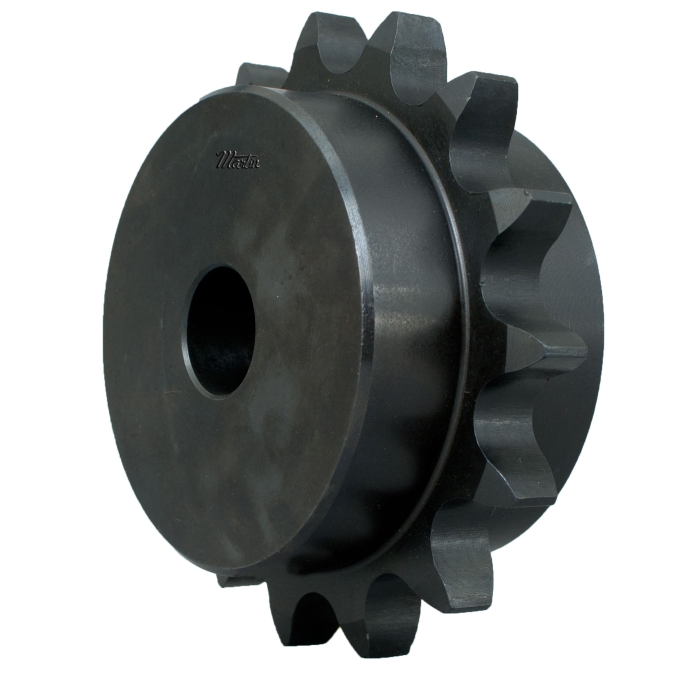

Metric B style sprockets are flat sprockets with a hub extension welded on one side. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type B Single Strand Stock Bore Welded, 32 to 84 mm Bore, 242.733 mm OD, #16B-1 Chain, 28 Teeth, 25.4 mm Pitch, 226.858 mm Pitch Diameter, 119.99 mm Diameter Hub, 50 mm Length Through Bore, Steel
| Bore Diameter | : | 32 to 84 mm |
| Chain Size | : | #16B-1 |
| Hub Diameter | : | 119.99 mm |
| Length Through Bore | : | 50 mm |
| Material | : | Steel |
| Number of Teeth | : | 28 |
| Outside Diameter | : | 242.733 mm |
| Pitch Diameter | : | 226.858 mm |
| Pitch | : | 25.4 mm |
| Type | : | Type B Single Strand Stock Bore Welded |
- Item Features 01=Without hardened teeth
- Item Features 02=Precise machining and processes ensure consistent finish and high quality
- Item Features 03=Bores are concentric to pitch line, minimizing run out
- Item Features 04=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
