Martin 160M54 MAR160M54
  1. pin-int

Martin 160M54 MAR160M54

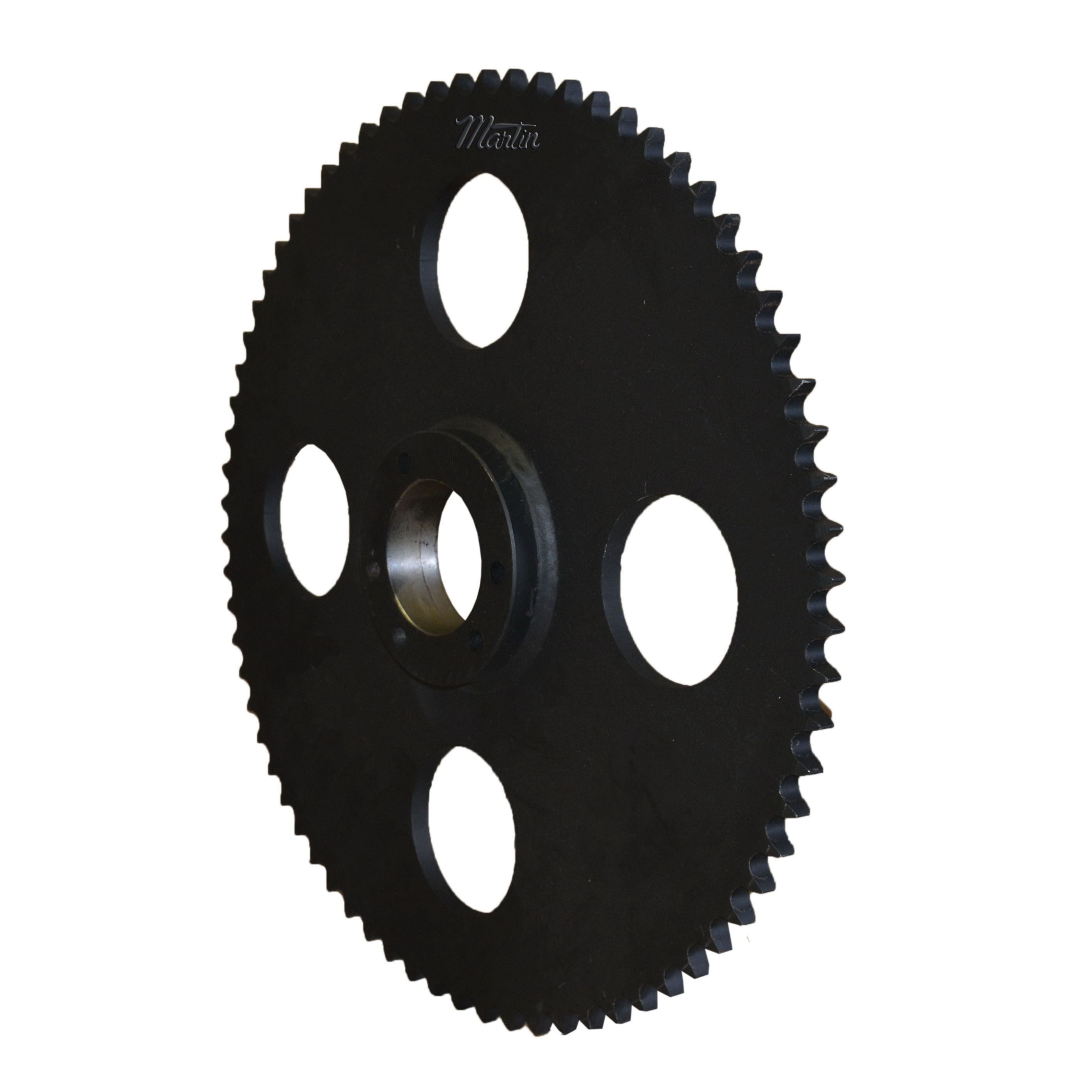

Martin 160M54 Type C Single Strand Welded Bushed Roller Chain Sprocket, 2 to 5-1/2 in Dia Bore, 35.539 in OD, #160 Chain, 54 Teeth, 2 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR160M54
  • MPN: 160M54
  • UPC: 697950027418
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

QD (quick detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Roller Chain Sprocket, Type C Single Strand Welded Bushed, 2 to 5-1/2 in Bore, 35.539 in OD, #160 Chain, 54 Teeth, 2 in Pitch, 34.3969 in Pitch Diameter, 9-1/2 in Diameter Hub, 5-3/16 in Length Through Bore, QD® M Bushing, Steel

Bore Diameter      :      2 to 5-1/2 in
Bushing Type      :      QD® M
Chain Size      :      #160
Hub Diameter      :      9-1/2 in
Length Through Bore      :      5-3/16 in
Material      :      Steel
Number of Teeth      :      54
Outside Diameter      :      35.539 in
Pitch Diameter      :      34.3969 in
Pitch      :      2 in
Type      :      Type C Single Strand Welded Bushed
  • Item Features 01=Interchangeable with other manufacturer's QD® bushings
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • Item Features 03=Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Item Features 04=Bores are concentric to pitch line, minimizing run out
