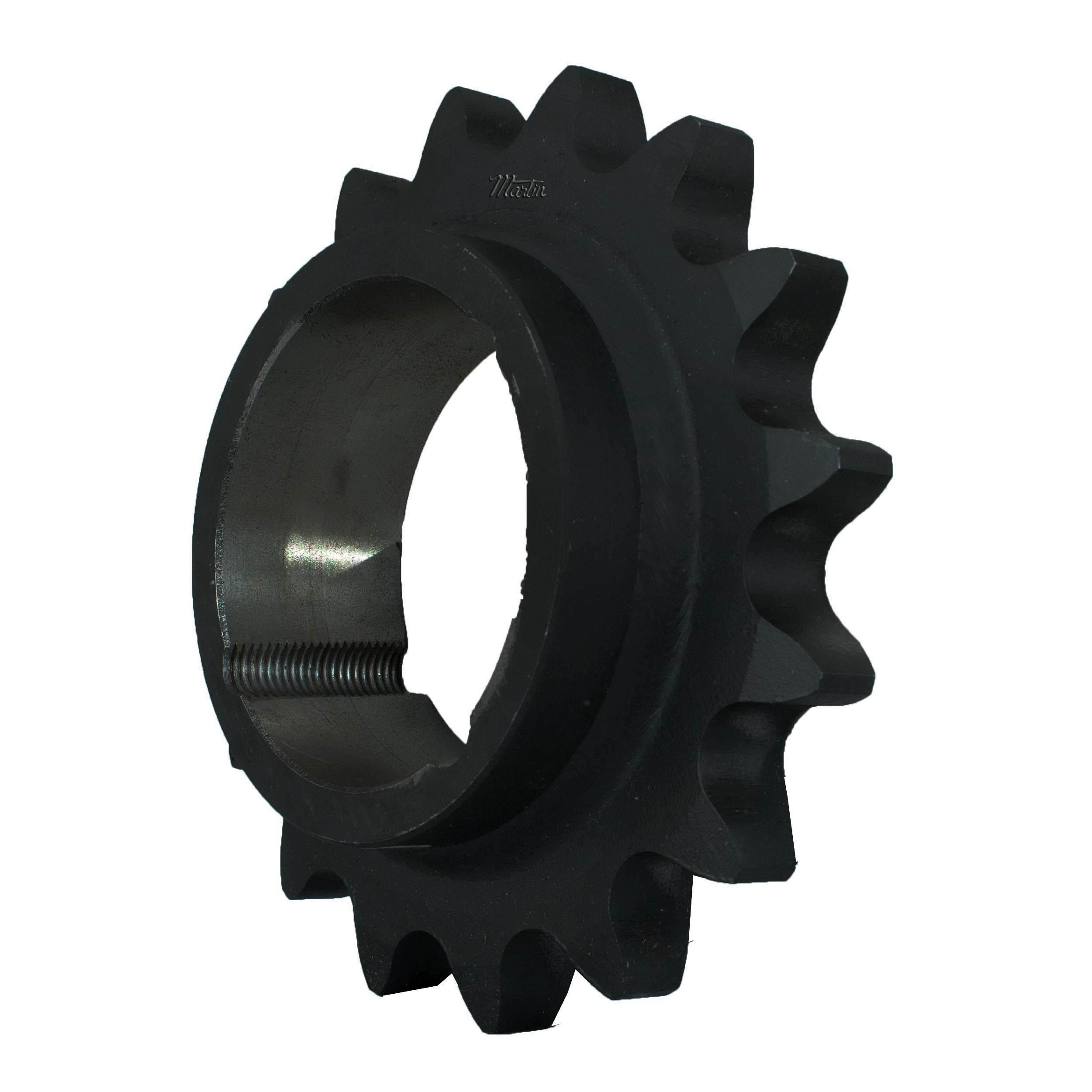

Martin 160BTB11H MAR160BTB11H
Martin 160BTB11H Type B Single Strand Welded Bushed Roller Chain Sprocket With Hardened Teeth, 1/2 to 2-1/2 in Dia Bore, 8.011 in OD, #160 Chain, 11 Teeth, 2 in Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR160BTB11H
- MPN: 160BTB11H
- UPC: 697950044019
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head setscrews instead of bolts.
Martin Roller Chain Sprocket, Type B Single Strand Welded Bushed, 1/2 to 2-1/2 in Bore, 8.011 in OD, #160 Chain, 11 Teeth, 2 in Pitch, 7.0989 in Pitch Diameter, 4-1/4 in Diameter Hub, 1-3/4 in Length Through Bore, TB 2517 Bushing, Steel
| Bore Diameter | : | 1/2 to 2-1/2 in |
| Bushing Type | : | TB 2517 |
| Chain Size | : | #160 |
| Hub Diameter | : | 4-1/4 in |
| Length Through Bore | : | 1-3/4 in |
| Material | : | Steel |
| Number of Teeth | : | 11 |
| Outside Diameter | : | 8.011 in |
| Pitch Diameter | : | 7.0989 in |
| Pitch | : | 2 in |
| Type | : | Type B Single Strand Welded Bushed |
- Interchangeable with other manufacturer's taper bushings
- Stocked heat treat
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
Specification Sheet
