Martin 14HS MAR14HS
  1. pin-int

Martin 14HS MAR14HS

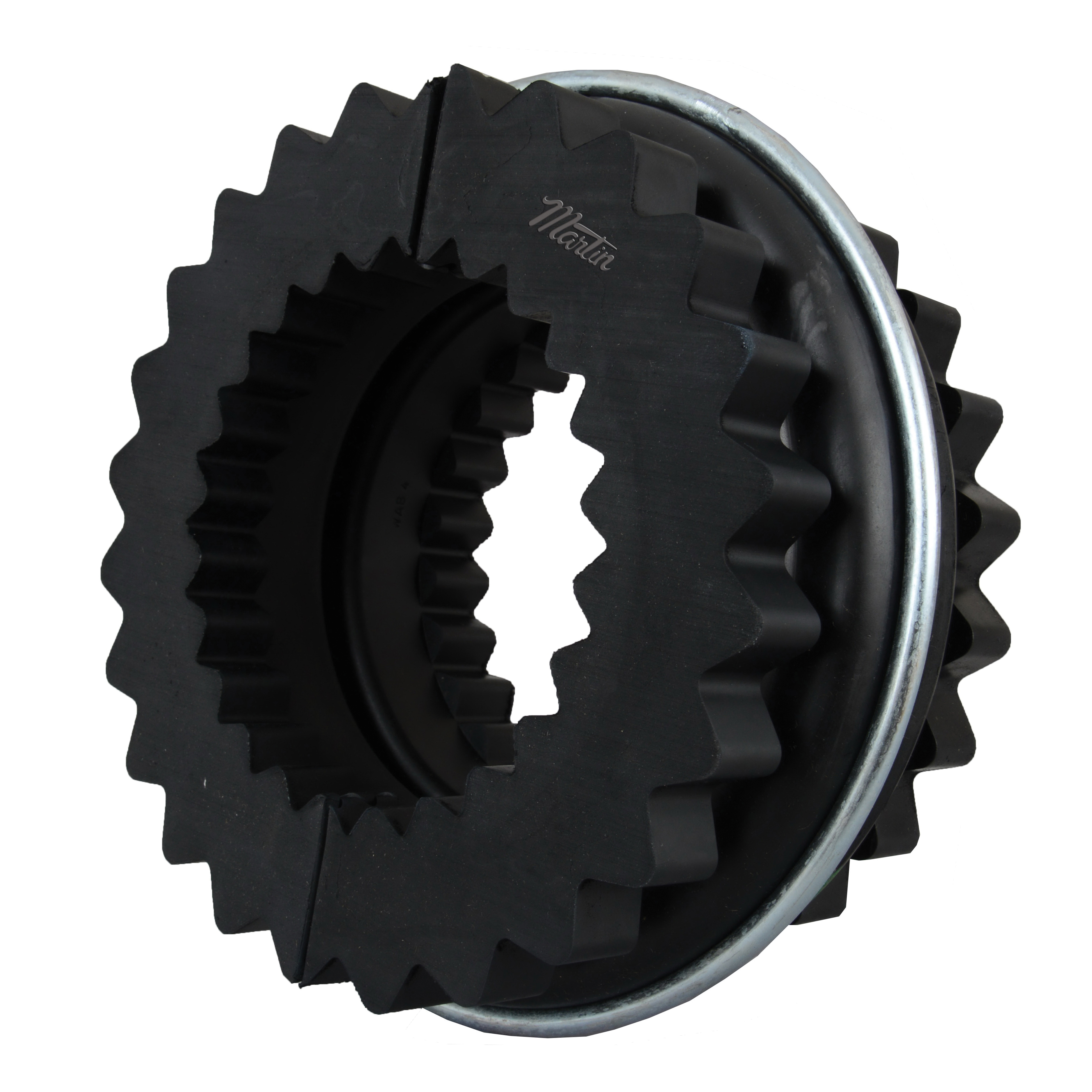

Martin Quadra-Flex® 14HS Two-Piece Coupling Sleeve, 014 Coupling, 6.6 in L, 12.688 in OD, 2200 rpm Max, Hytrel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR14HS
  • MPN: 14HS
  • UPC: 697950276076
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. TPR, EPDM, Neoprene and Hytrel® sleeves are available in solid, split and semi-split construction.

Martin Quadra-Flex® Coupling Sleeve, Two-Piece, 014 Coupling, 6.6 in Length, 12.688 in OD, 47250 in-lb Torque, 2200 rpm Maximum, -65 to 250 deg F, Hytrel, Orange

Coupling Size      :      014
Finish      :      Orange
Length      :      6.6 in
Material      :      Hytrel
Maximum Speed      :      2200 rpm
Outside Diameter      :      12.688 in
Temperature Rating      :      -65 to 250 deg F
Torque Rating      :      47250 in-lb
Type      :      Two-Piece
  • Sleeves available in four materials: TPR (Thermoplastic Rubber), EPDM, Neoprene and Hytrel
  • Available split and un-split
  • Precise machining and processes ensure consistent finish and high quality
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_4H_7_8_Catalog.pdf
