Martin 14CH605 MAR14CH605

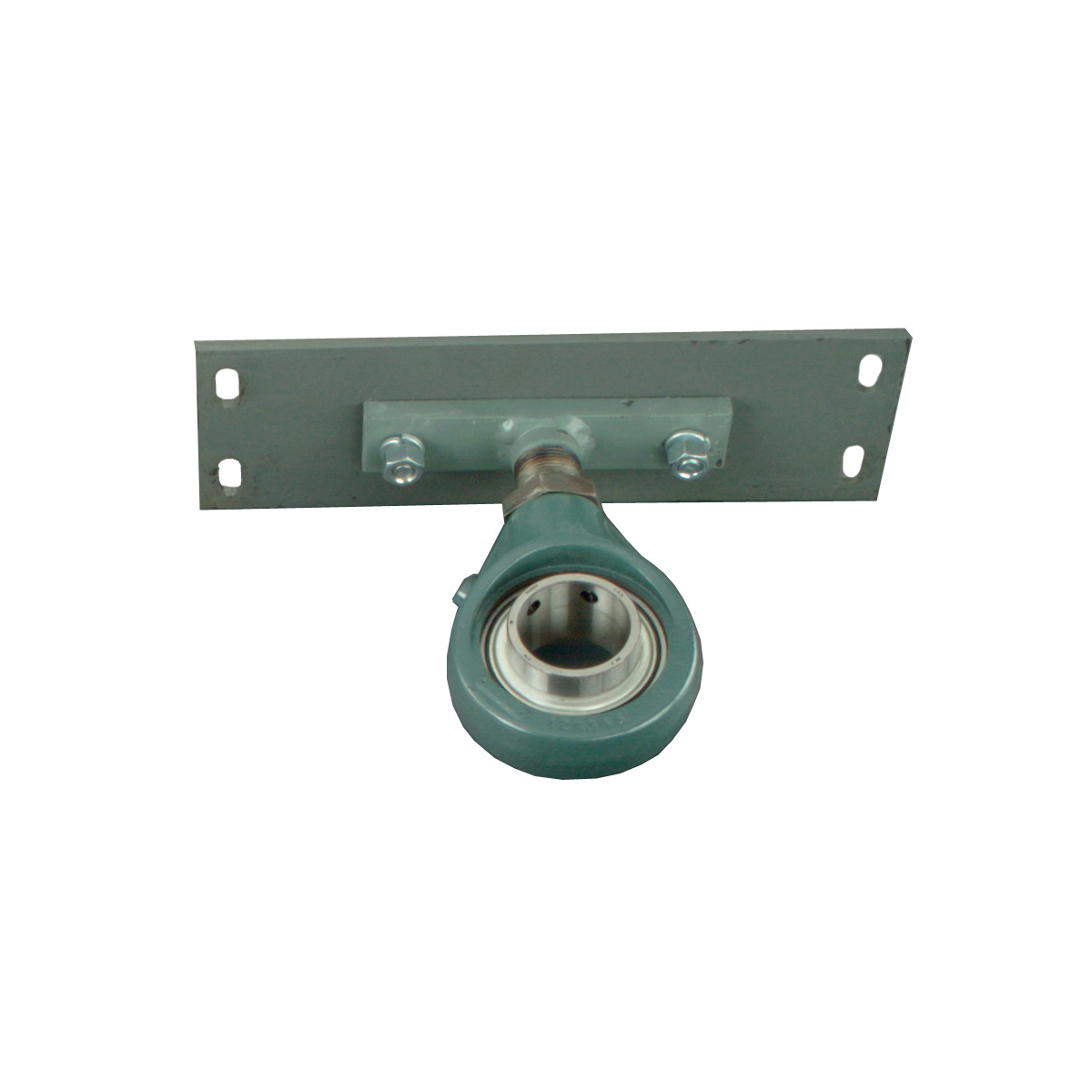

Martin 14CH605 Conveyor Hanger, 60 Style, 14 in Dia Conveyor, 2-7/16 in Coupling

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR14CH605
  • MPN: 14CH605
  • UPC: 697950096711
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

No. 60 hangers are furnished with a heavy duty, permanently lubricated and sealed, self-aligning ball bearing which permits temperatures up to 245 deg F and will allow for up to 4 deg shaft misalignments. This hanger is mounted on top of the trough flanges. Grease fitting can be furnished if specified.

Martin Conveyor Hanger, 60 Style, 14 in Conveyor Diameter, 2-7/16 in Coupling, 2-1/2 in Mounting Hole Center, 1/2 x 2-1/2 in Bolt, 19-1/2 in Top Frame Length, 5 in Top Frame Width, 1/2 in Top Frame Thickness, 2 Mounting Bolts, 9/16 x 1-5/16 in Slot, Steel

Bolt Size      :      1/2 x 2-1/2 in
Conveyor Diameter      :      14 in
Coupling Size      :      2-7/16 in
Material      :      Steel
Mounting Hole Center      :      2-1/2 in
Number of Mounting Bolts      :      2
Slot Size      :      9/16 x 1-5/16 in
Style      :      60
Top Frame Length      :      19-1/2 in
Top Frame Thickness      :      1/2 in
Top Frame Width      :      5 in
  • Laser cut flat pieces to ensure consistent finish and high quality
