Martin 14CH2205-O MAR14CH2205-O
  1. pin-int

Martin 14CH2205-O MAR14CH2205-O

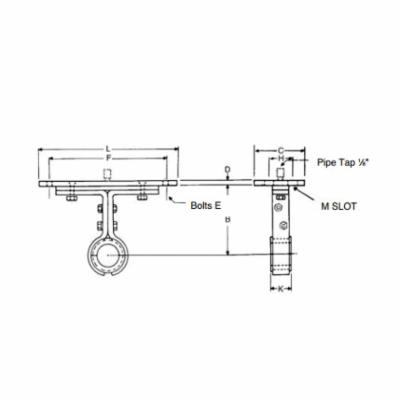

Martin 14CH2205-O Conveyor Hanger, 220 Style, 14 in Dia Conveyor, 2-7/16 in Coupling

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR14CH2205-O
  • MPN: 14CH2205-O
  • UPC: 697950096483
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

No. 220 hangers are designed for mounting on top of the trough flanges and may be used where dust-tight or weather-proof operation is not required. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.

Martin Conveyor Hanger, 220 Style, 14 in Conveyor Diameter, 2-7/16 in Coupling, 2-1/2 in Mounting Hole Center, 19-1/2 in Top Frame Length, 5 in Top Frame Width, 1/2 in Top Frame Thickness, 9/16 x 1-5/16 in Slot

Conveyor Diameter      :      14 in
Coupling Size      :      2-7/16 in
Mounting Hole Center      :      2-1/2 in
Slot Size      :      9/16 x 1-5/16 in
Style      :      220
Top Frame Length      :      19-1/2 in
Top Frame Thickness      :      1/2 in
Top Frame Width      :      5 in
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_CHB2163H_Catalog.pdf
