Martin 140CTB35 MAR140CTB35

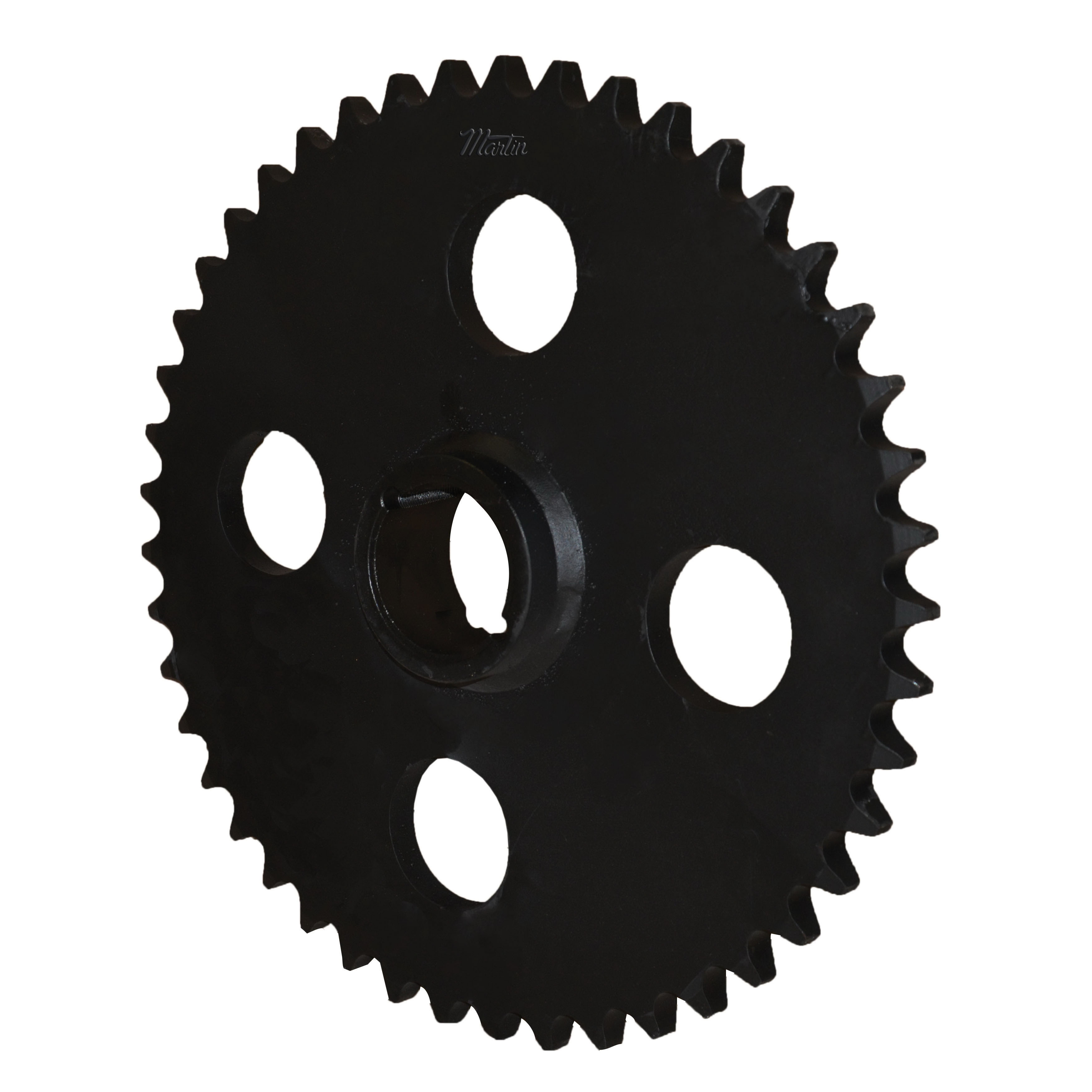

Martin 140CTB35 Type C Single Strand Welded Bushed Roller Chain Sprocket, 1.188 to 3.5 in Dia Bore, 20.494 in OD, #140 Chain, 35 Teeth, 1-3/4 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR140CTB35
  • MPN: 140CTB35
  • UPC: 697950033051
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head setscrews instead of bolts.

Martin Roller Chain Sprocket, Type C Single Strand Welded Bushed, 1.188 to 3.5 in Bore, 20.494 in OD, #140 Chain, 35 Teeth, 1-3/4 in Pitch, 19.5227 in Pitch Diameter, 6-1/2 in Diameter Hub, 3-1/2 in Length Through Bore, TB 3535 Bushing, Steel

Bore Diameter      :      1.188 to 3.5 in
Bushing Type      :      TB 3535
Chain Size      :      #140
Hub Diameter      :      6-1/2 in
Length Through Bore      :      3-1/2 in
Material      :      Steel
Number of Teeth      :      35
Outside Diameter      :      20.494 in
Pitch Diameter      :      19.5227 in
Pitch      :      1-3/4 in
Type      :      Type C Single Strand Welded Bushed
  • Interchangeable with other manufacturer's taper bushings
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
