Martin 132C12 MAR132C12
  1. pin-int

Martin 132C12 MAR132C12

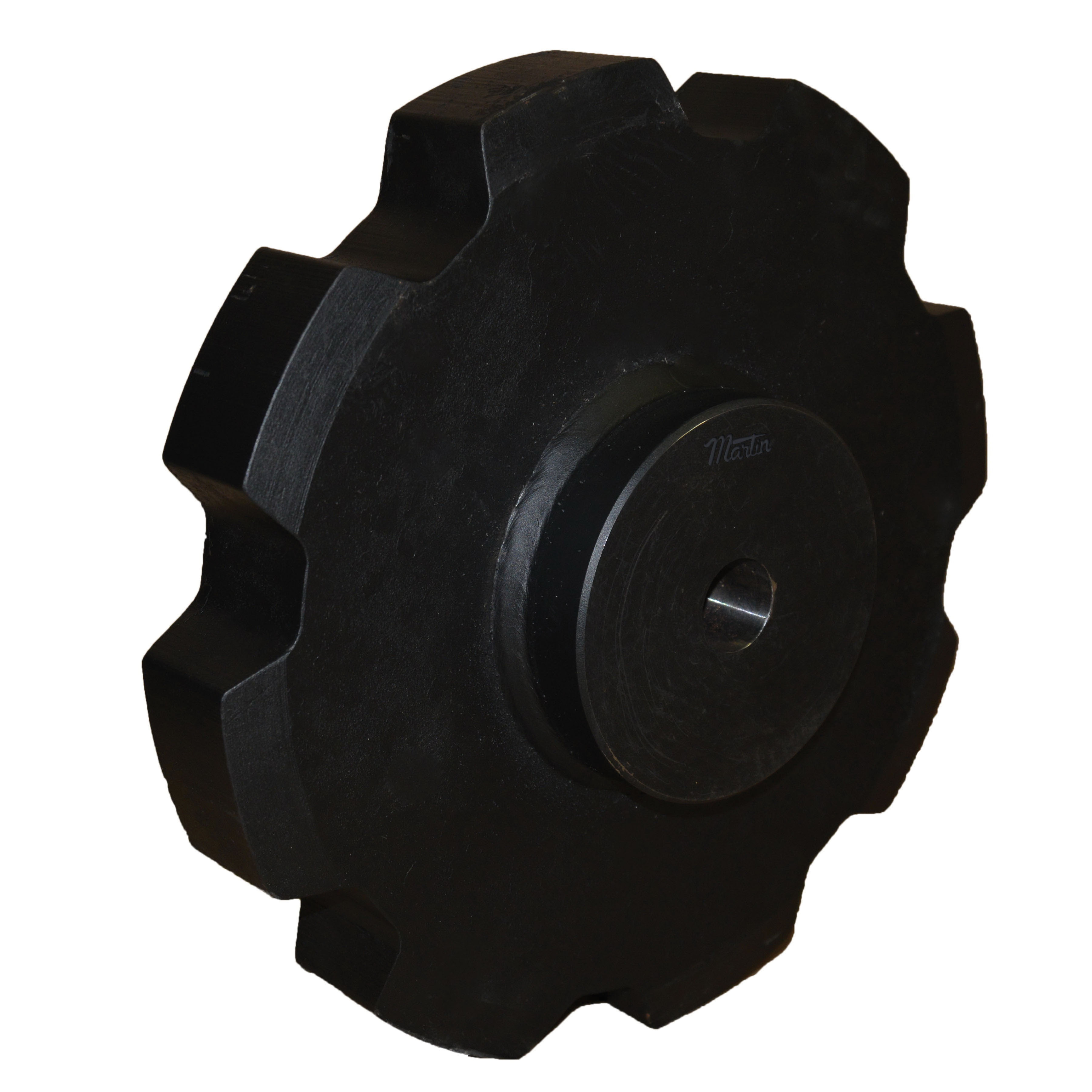

Martin Accu-Torch® 132C12 Type C Reboreable Flame Cut Sprocket, 1.5 to 4.813 in Dia Bore, 24.812 in OD, #132 Chain, 12 Teeth, 6.05 in Pitch, 23.377 in Dia Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand Name: Martin
  • Part Number: MAR132C12
  • MPN: 132C12
  • UPC: 697950068862
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.

Martin Accu-Torch® Flame Cut Sprocket, Type C Reboreable, 1.5 to 4.813 in Bore, 24.812 in OD, #132 Chain, 12 Teeth, 6.05 in Pitch, 23.377 in Pitch Diameter, 7-1/2 in Diameter Hub, 6-3/8 in Length Through Bore, Steel

Bore Diameter      :      1.5 to 4.813 in
Chain Size      :      #132
Hub Diameter      :      7-1/2 in
Length Through Bore      :      6/3/2008 in
Material      :      Steel
Number of Teeth      :      12
Outside Diameter      :      24.812 in
Pitch Diameter      :      23.377 in
Pitch      :      6.05 in
Type      :      Type C Reboreable
  • Item Features 01=Manufactured of high carbon steel
  • Item Features 02=Precise machining and processes ensure consistent finish and high quality
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_1030A10_Catalog.pdf
