Martin 12BTB25H MAR12BTB25H

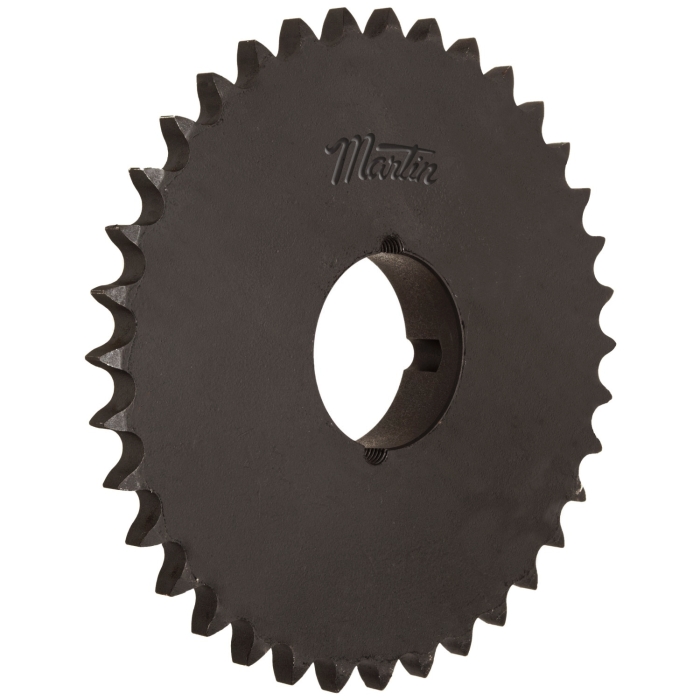

Martin 12BTB25H Type B Single Strand Stock Bore Welded Roller Chain Sprocket With Hardened Teeth, 50.8 mm Dia Bore, 163.74 mm OD, #12B-1 Chain, 25 Teeth, 19.05 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR12BTB25H
- MPN: 12BTB25H
- UPC: 697950410173
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
A metric taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Roller Chain Sprocket, Type B Single Strand Stock Bore Welded, 50.8 mm Bore, 163.74 mm OD, #12B-1 Chain, 25 Teeth, 19.05 mm Pitch, 151.99 mm Pitch Diameter, 90 mm Diameter Hub, 31.75 mm Length Through Bore, 2012 Taper Bushing, Steel
| Bore Diameter | : | 50.8 mm |
| Bushing Type | : | 2012 Taper |
| Chain Size | : | #12B-1 |
| Hub Diameter | : | 90 mm |
| Length Through Bore | : | 31.75 mm |
| Material | : | Steel |
| Number of Teeth | : | 25 |
| Outside Diameter | : | 163.74 mm |
| Pitch Diameter | : | 151.99 mm |
| Pitch | : | 19.05 mm |
| Type | : | Type B Single Strand Stock Bore Welded |
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
