Martin 10SC100-13 MAR10SC100-13

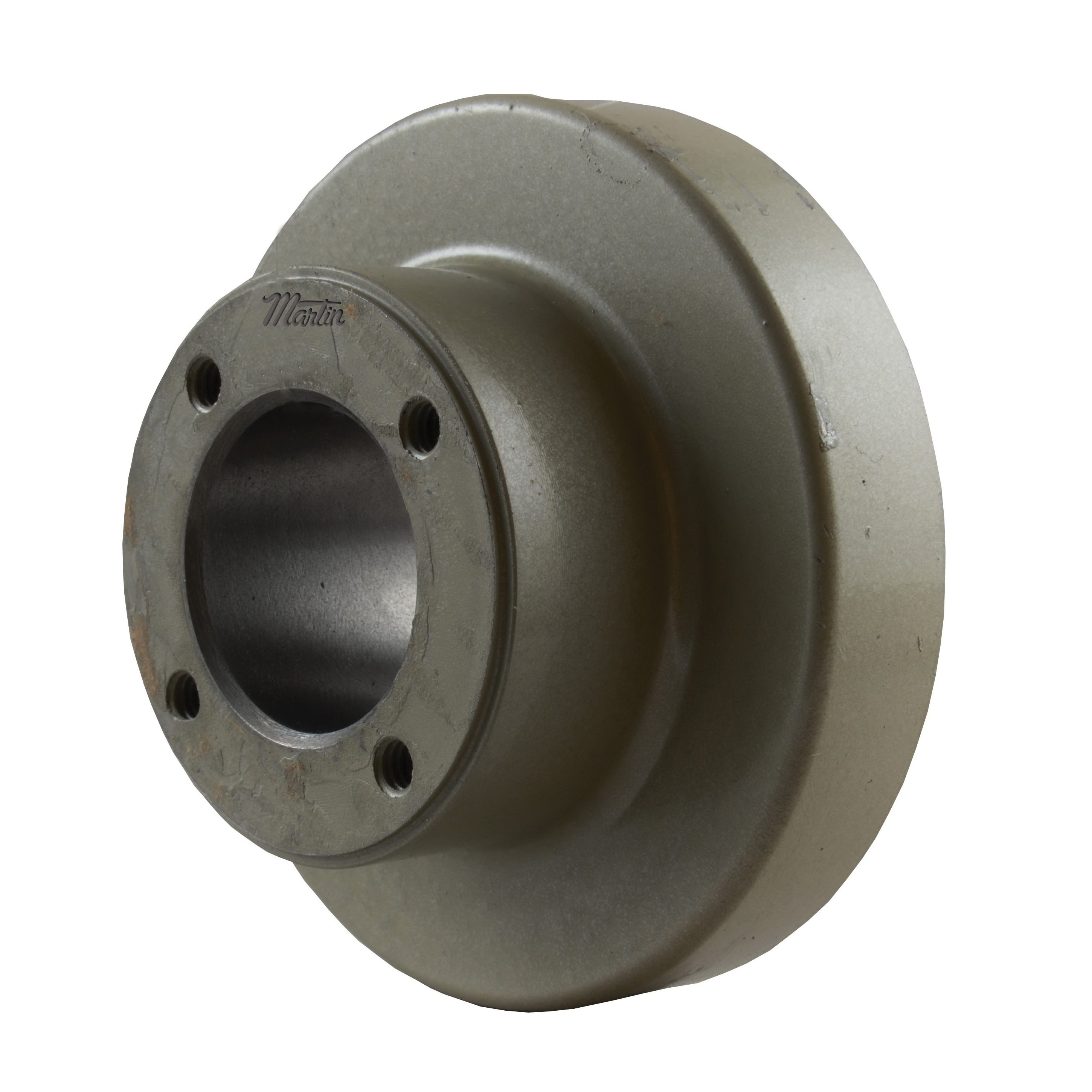

Martin Quadra-Flex® 10SC100-13 Type SC Spacer Coupling Flange, 010 Coupling, 3.375 to 2.315 in Dia Bore, 4-7/8 in L Through Bore, 3-13/16 in Dia Hub, Cast Iron
- Manufacturer: Martin Sprocket & Gear
- Brand Name: Martin
- Part Number: MAR10SC100-13
- MPN: 10SC100-13
- UPC: 697950275390
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation, and withstands misalignment, shock, and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.
Martin Quadra-Flex® Spacer Coupling Flange, Type SC, 010 Coupling, 3.375 to 2.315 in Bore Dia, 3-13/16 in Hub Dia, 2-31/32 in Hub Length, 3600 rpm Maximum, 4-7/8 in Length Through Bore, Cast Iron
| Bore Diameter | : | 3.375 to 2.315 in |
| Coupling Size | : | 010 |
| Hub Diameter | : | 3-13/16 in |
| Hub Length | : | 2-31/32 in |
| Length Through Bore | : | 4-7/8 in |
| Material | : | Cast Iron |
| Maximum Speed | : | 3600 rpm |
| Type | : | Type SC |
- Handles various combinations of shock, vibration and misalignment
- No lubrication needed and easy to install
- Available in three styles, J and S flanges - Bored to size, B flanges - QD bushed and SC spacer flanges - Pump style
- Precise machining and processes ensure consistent finish and high quality
Specification Sheet
